DX80N9X6S-P2C Banner I/O Modules

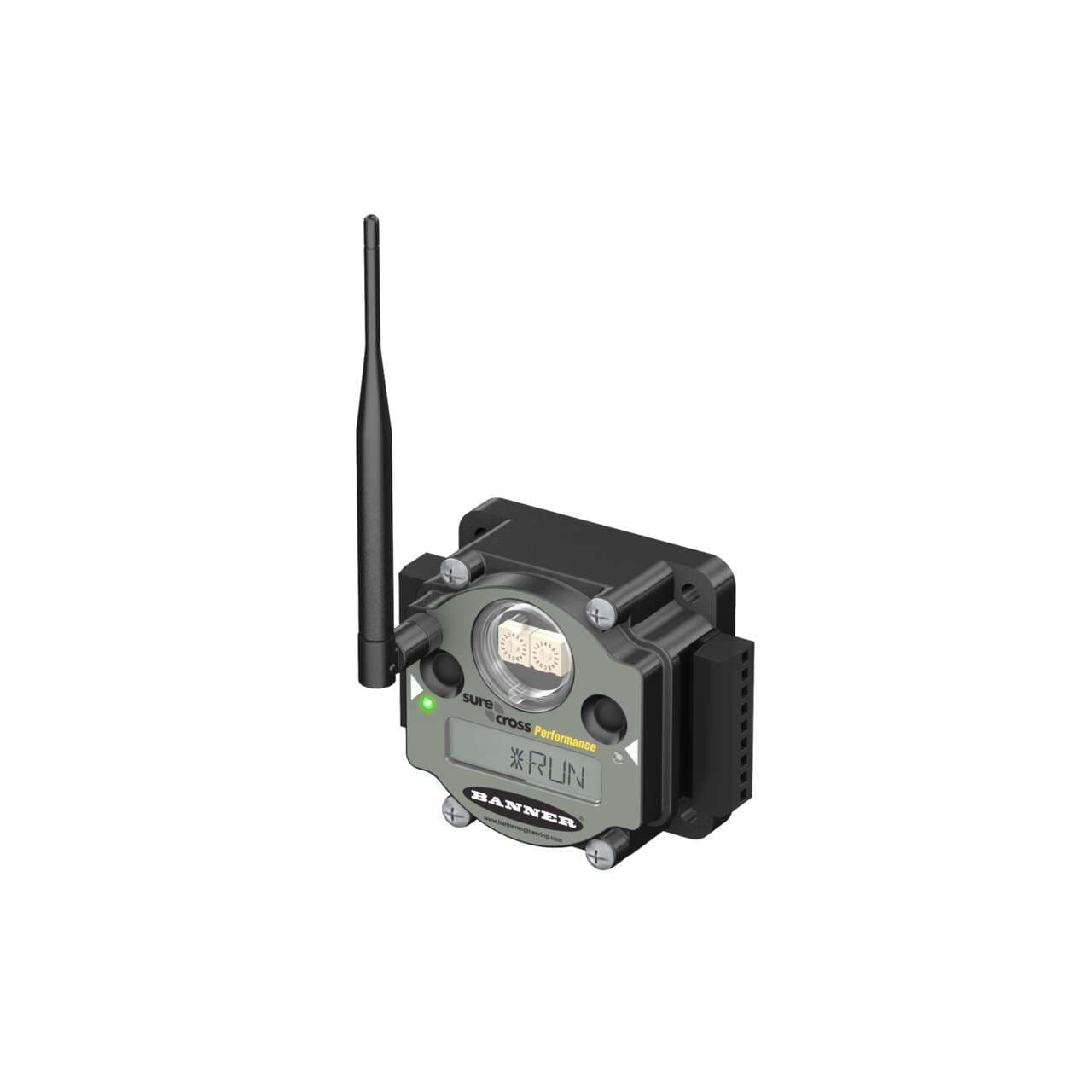

Banner Engineering DX80N9X6S-P2C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. It measures H44.5mm x W103.3mm x D80.1mm, making it compact for easy installation. The DX80N9X6S-P2C is equipped with 2 analog outputs (0-20mA; 12-bit), 4 digital outputs (30Vdc; Sourcing; 100mA), 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN), supporting versatile connectivity options. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for reliable data transmission at a frequency of 900MHz within the ISM band, capable of reaching a maximum transmission distance of 9.6km at nominal emission power. The unit's design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector for easy setup and monitoring. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) for operation.
