DX80N9X6S-PM8C

Banner

Product Lifecycle: Active

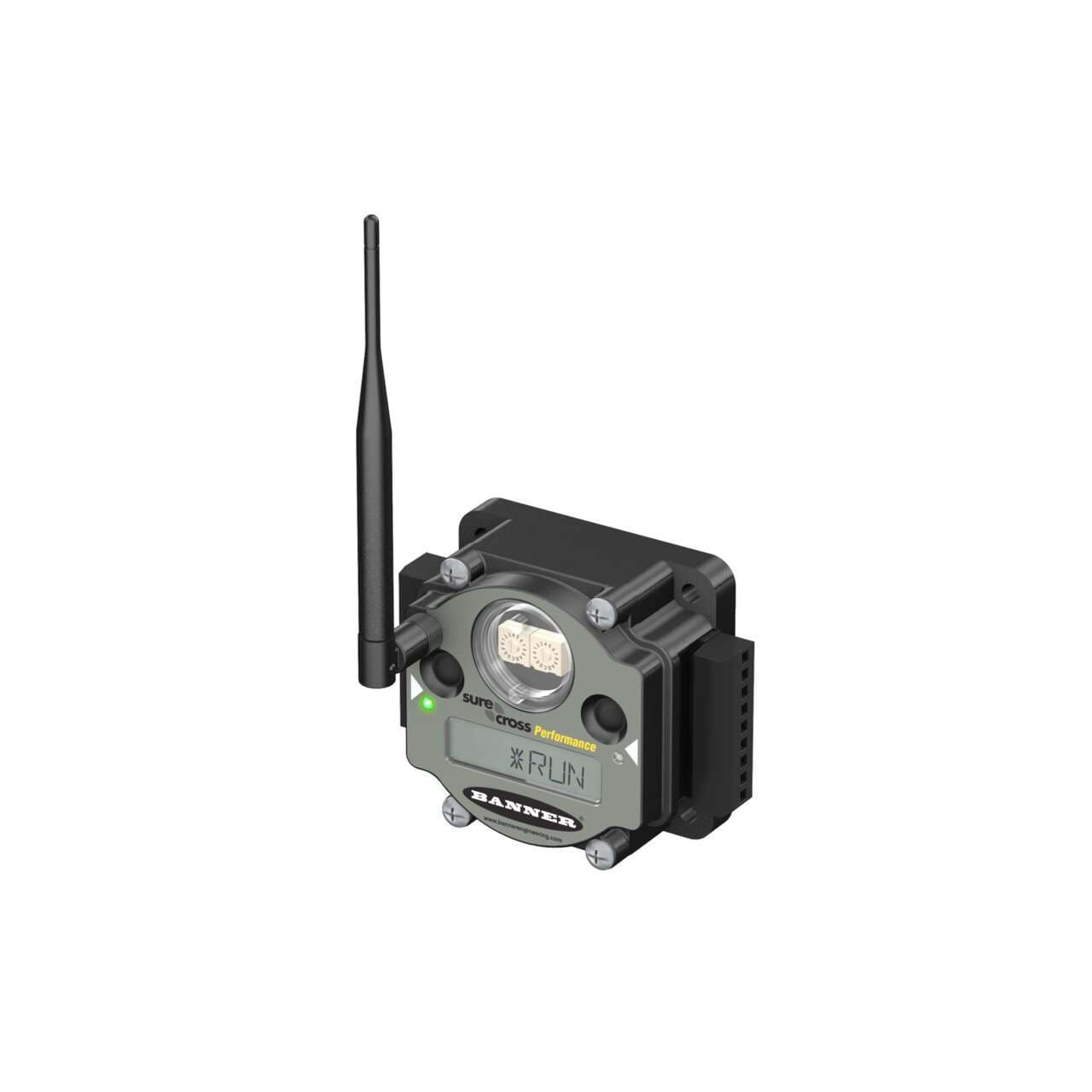

Banner Engineering DX80N9X6S-PM8C is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, it includes 6 digital outputs (30Vdc; Sourcing; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). The DX80N9X6S-PM8C operates on a 900 MHz transmission frequency, has a rectangular shape, and is designed for performance node functions within the PM series for wire replacement. It features I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band 1W frequency, capable of a maximum 9.6km transmission distance at nominal emission power.

DX80N9X6S-PM8C

Banner Engineering DX80N9X6S-PM8C is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, it includes 6 digital outputs (30Vdc; Sourcing; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). The DX80N9X6S-PM8C operates on a 900 MHz transmission frequency, has a rectangular shape, and is designed for performance node functions within the PM series for wire replacement. It features I.O. mapping, 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band 1W frequency, capable of a maximum 9.6km transmission distance at nominal emission power.

DX80...C TYPICAL.pdf

Performance PM8 Node with I/O Mapping.pdf

DX80...C TYPICAL.stp

Product details

DX80...C TYPICAL.pdf

Performance PM8 Node with I/O Mapping.pdf

DX80...C TYPICAL.stp

1-wire Serial InterfaceNo
Wireless Radio Frequency900 MHz
WirelessYes
RS-485No
PROFINETNo
RS-232No

EtherNet/IPNo

Feature: Hazardous AreaYes

Tree TopologyNo

Modbus/TCPNo

Modbus RTUNo

Star TopologyYes

Point-to-Point TopologyYes

Point-to-Multipoint TopologyYes

Max Operating Temperature ( °C)85

Relative Humidity95%

Min Operating Temperature ( °C)-40

Min Temp Operating Conditions-40

Hazardous/Intrinsically Safe ClassificationClass I, Division 2/Zone 2; ATEX Zone 2

Max Temp Operating Conditions85

LCD DisplayYes

Output Details6 PNP Discrete

Environmental Rating (NEMA)NEMA 6

Discrete InputsYes

Input Details6 PNP Discrete

Device TypeNode

Power Supply10-30 V dc

Discrete OutputsYes

PowerDC

Housing StyleExternal Terminals

Input/OutputDiscrete

Environmental Rating (IP)IP20

This part can ship within 24 hours

$599.00

Stock:

2

Select Qty:

$599.00

$599.00 each

This part can ship within 24h!

Fast worldwide Shipping and Delivery

Shipping cost will be calculated during checkout

Payments methods

Secure Payment Processing
with money back guarantee

1 year warranty on all parts

Responsive Customer Support
with personalized assistance

Need more details?

Feel free to chat with us.
