DXM100-S1R2 Banner I/O Modules

DXM100-S1R2 on Powermatic Associates
Banner

Part#:DXM100-S1R2

Manufacturer:Banner

Alt. Part#:95656

Product Lifecycle:Active

In-stock parts: 2

Nov 16, 2024

DXM100 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; RS485

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM100-S1R2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • Modbus RTU
    Yes
  • PROFINET
    No
  • Modbus/TCP
    No
  • Star Topology
    Yes
  • RS-232
    No
  • RS-485
    Yes
  • On-Board Memory (MB)
    N/A
  • EtherNet/IP
    No
  • Point-to-Point Topology
    Yes
  • Tree Topology
    Yes
  • Dimension Length (mm)
    100
  • Feature: Hazardous Area
    No
  • Processing Speed (MHz)
    N/A
  • Min Temp Operating Conditions
    -20
  • Min Operating Temperature ( °C)
    -40
  • Point-to-Multipoint Topology
    Yes
  • Relative Humidity
    95%
  • Max Operating Temperature ( °C)
    85
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Analog Inputs
    Yes
  • Discrete Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Discrete Outputs
    Yes
  • Analog Outputs
    Yes
  • Input Details
    4 Universal Inputs
  • Housing Style
    External Terminals
  • Device Type
    Modbus Slave Device
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM100-S1R2 Description

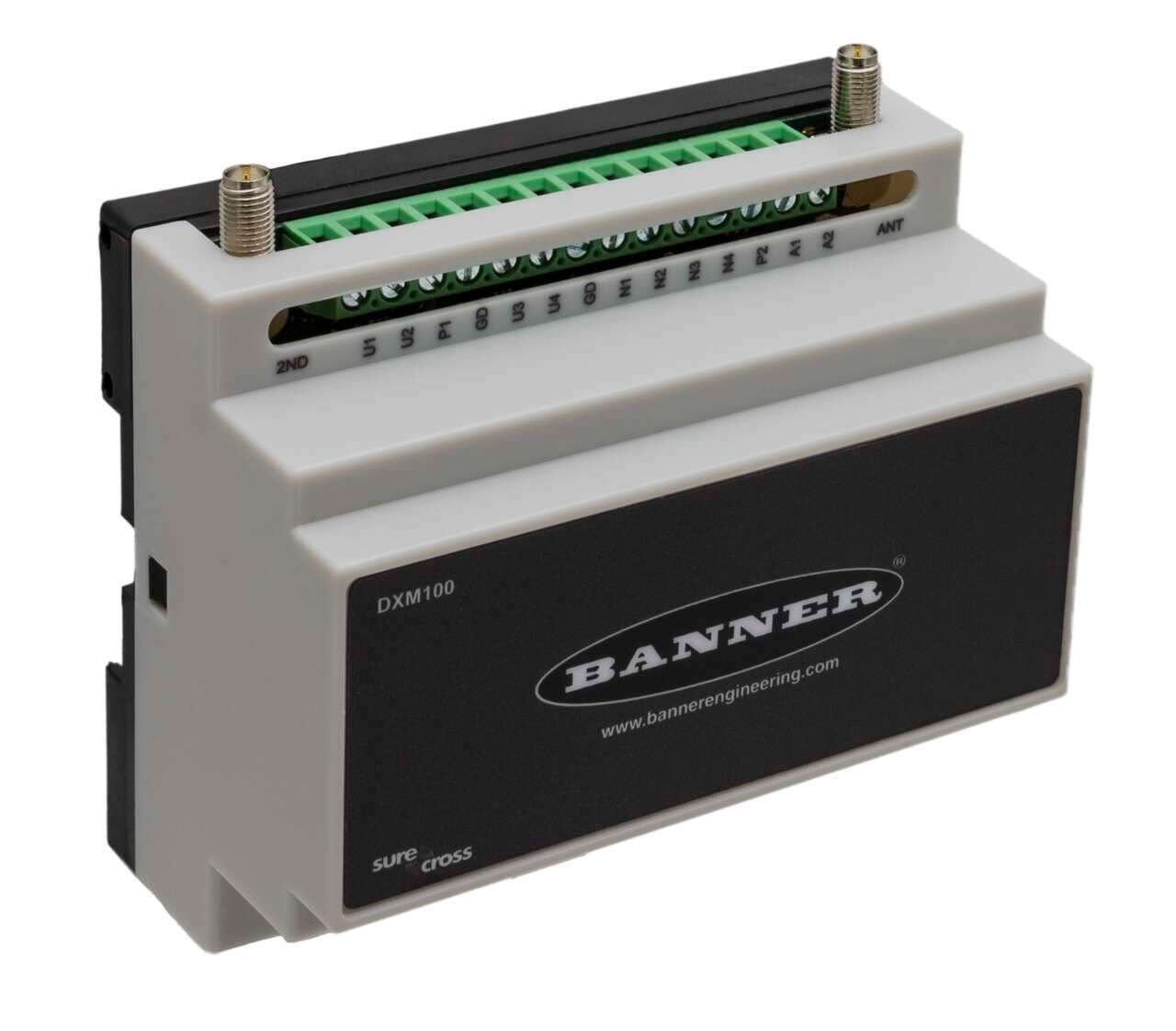

Banner Engineering DXM100-S1R2 is a Remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (4-20mA / 0-10Vdc), ensuring compatibility with various sensors and actuators. The device is protected by an IP20 degree of protection and has dimensions of H61.1mm x W105.3mm x D94.7mm. It includes 4 digital outputs (12Vdc-30Vdc; NMOS; 1A) and 4 digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-S1R2 utilizes FHSS (Frequency Hopping Spread Spectrum) technology for secure communication and features an RP-SMA connector for connectivity. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports RS-485 Modbus RTU communication protocol. With an 8GB memory capacity via an SD card and a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America), it achieves a maximum transmission distance of 9.6km at nominal emission power.

Related documents DXM100-S1R2 Specs

DXM100-S1R2 195454.pdf

This item can ship within 24h!

Manufacturer warranty

$599.00

Stock:

2

Select Qty:

$599.00

$599.00 each
