DXM100-B1R4 Banner I/O Modules

DXM100-B1R4 on Powermatic Associates
Banner

Part#:DXM100-B1R4

Alt. Part#:800138

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

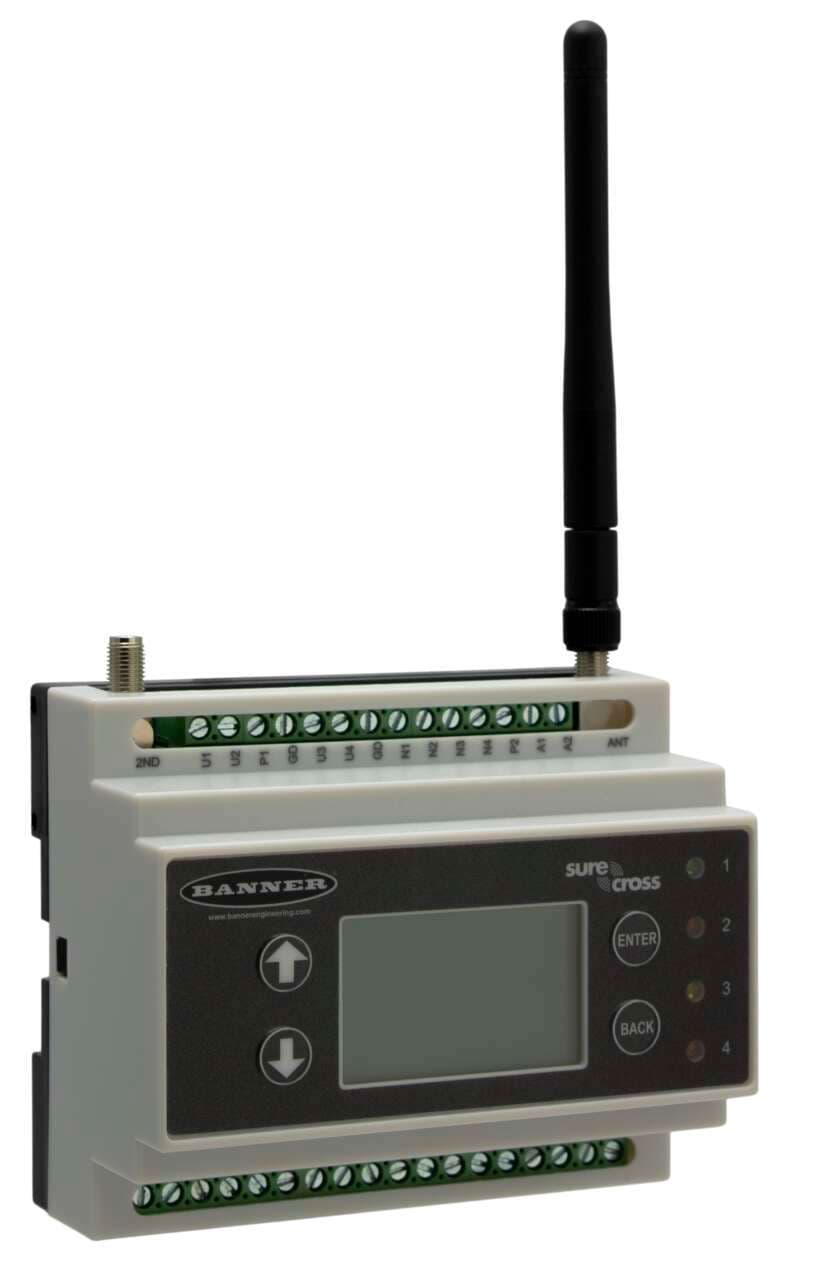

DXM100 Controller; MultiHop Radio 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-485
    Yes
  • Wireless
    Yes
  • RS-232
    Yes
  • Wireless Radio Frequency
    2.4 GHz
  • PROFINET
    No
  • Modbus/TCP
    Yes
  • Modbus RTU
    Yes
  • Application: Indicator Light
    Yes
  • EtherNet/IP
    Yes
  • Application: Temperature Input
    Yes
  • On-Board Memory (MB)
    2
  • Feature: Hazardous Area
    No
  • Application: Object Counting
    Yes
  • Processing Speed (MHz)
    100
  • Dimension Length (mm)
    100
  • Star Topology
    Yes
  • Tree Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Min Operating Temperature ( °C)
    -20
  • LCD Display
    Yes
  • Relative Humidity
    95%
  • Max Operating Temperature ( °C)
    80
  • Min Temp Operating Conditions
    -20
  • Environmental Rating (IP)
    IP20
  • Max Temp Operating Conditions
    60
  • Power Supply
    12-30 V dc
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Input Details
    4 Universal Inputs
  • Analog Inputs
    Yes
  • Discrete Inputs
    Yes
  • Analog Outputs
    Yes
  • Discrete Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with MultiHop Radio
  • Housing Style
    External Terminals
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-B1R4 on Powermatic Associates is $999.00. Order now.


About the product

Banner Engineering DXM100-B1R4 is a Remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller has dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (4-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-B1R4 features a 100MHz processing speed, supports data aggregation of sensors, and utilizes wireless networks with FHSS (Frequency Hopping Spread Spectrum) technology and a SAM4 processor CAN. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485, RS-232, Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and up to 8GB with an SD card. Operating on a 2.4GHz ISM band with a 65mW radio (HE5 MultiHop data radio; worldwide), it can achieve a maximum transmission distance of 3.2km at nominal emission power.
