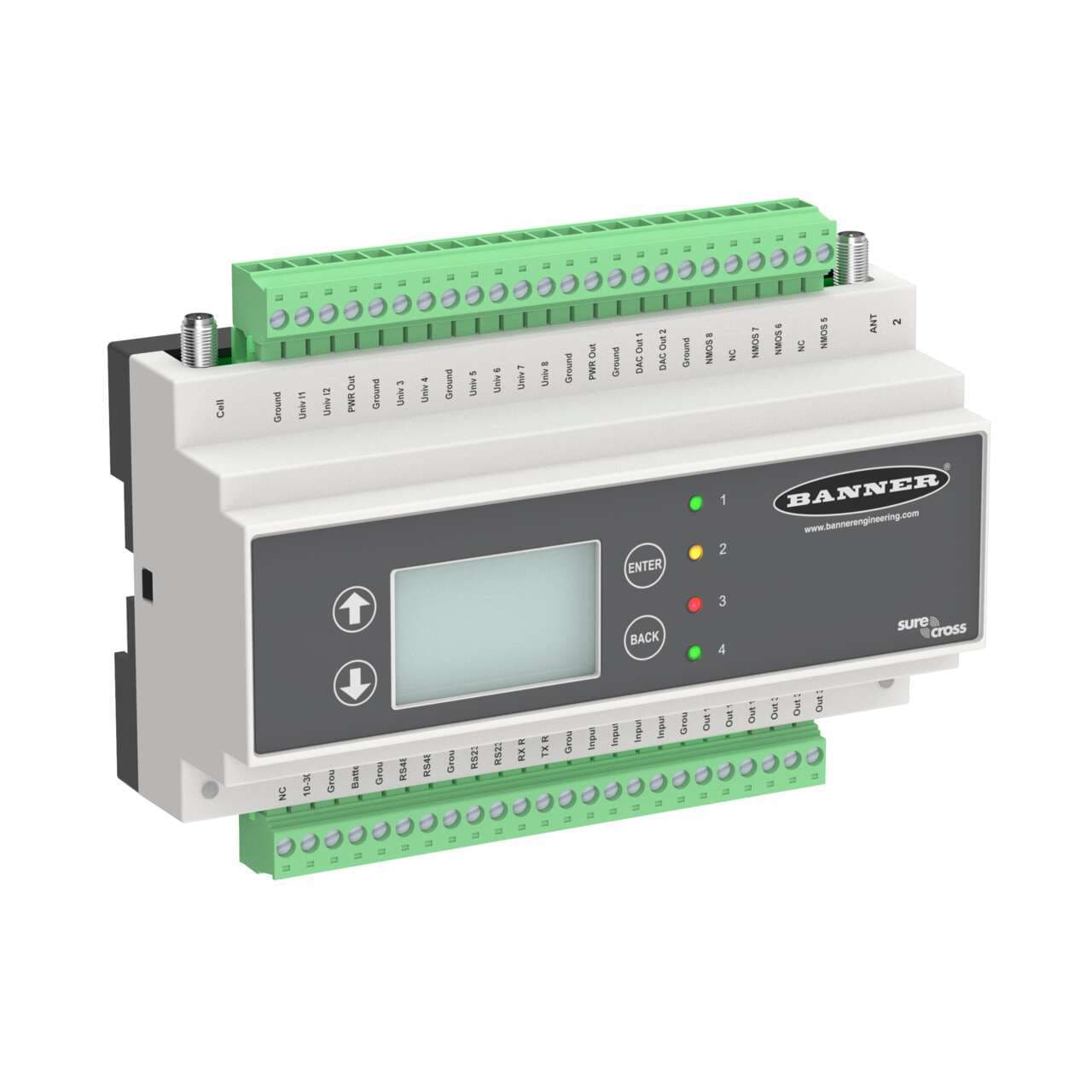

DXM150-B2R2 Banner I/O Modules

DXM150-B2R2 on Powermatic Associates
Banner

Part#:DXM150-B2R2

Manufacturer:Banner

Alt. Part#:800841

Product Lifecycle:Active

Get a quick Quote!

DXM150 Controller; Multihop Radio 900 MHz 1 W; Inputs: 2 Discrete, 8 Universal; Outputs: 8 Discrete, 2 Analog; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DXM150-B2R2 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    662.24432 g
  • Country Of Origin
    US
  • RS-232
    Yes
  • RS-485
    Yes
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • Wireless Radio Frequency
    900 MHz
  • PROFINET
    No
  • Modbus/TCP
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Application: Indicator Light
    Yes
  • Application: Temperature Input
    Yes
  • Feature: Hazardous Area
    No
  • Application: Object Counting
    Yes
  • Dimension Length (mm)
    150
  • Processing Speed (MHz)
    100
  • Star Topology
    Yes
  • On-Board Memory (MB)
    2
  • Tree Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Relative Humidity
    95%
  • Point-to-Multipoint Topology
    Yes
  • Min Temp Operating Conditions
    -20
  • LCD Display
    Yes
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Output Details
    8 PNP/NPN Selectable, 2 Analog
  • Discrete Inputs
    Yes
  • Input Details
    2 Isolated discrete and 8 Universal
  • Discrete Outputs
    Yes
  • Analog Inputs
    Yes
  • Analog Outputs
    Yes
  • Housing Style
    External Terminals
  • Input/Output
    Analog & Discrete
  • Device Type
    Wireless Controller with MultiHop Radio
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DXM150-B2R2 Description

Banner Engineering DXM150-B2R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features 2 analog outputs (0-20mA / 0-10Vdc), 8 digital outputs (12Vdc-30Vdc; PNP/NPN; 100mA), and 10 digital inputs, which include 2 isolated inputs (12-30Vdc) and 8 inputs (12Vdc-30Vdc; Sink/Source/Counter) that can also function as 8 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). It utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km at nominal emission power. The DXM150-B2R2 is equipped with a 100MHz processor, supports Frequency Hopping Spread Spectrum (FHSS) technology, and is powered by a SAM4 processor. Connections are facilitated through an RJ45 connector for Ethernet and an RP-SMA connector, supporting a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). Communication protocols include RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP. It has a memory capacity of 2MB on-board and supports an 8GB SD card. The device's dimensions are H93.9mm x W156mm x D94.6mm.

Related documents DXM150-B2R2 Specs

DXM150-B2R2 195952.pdf
