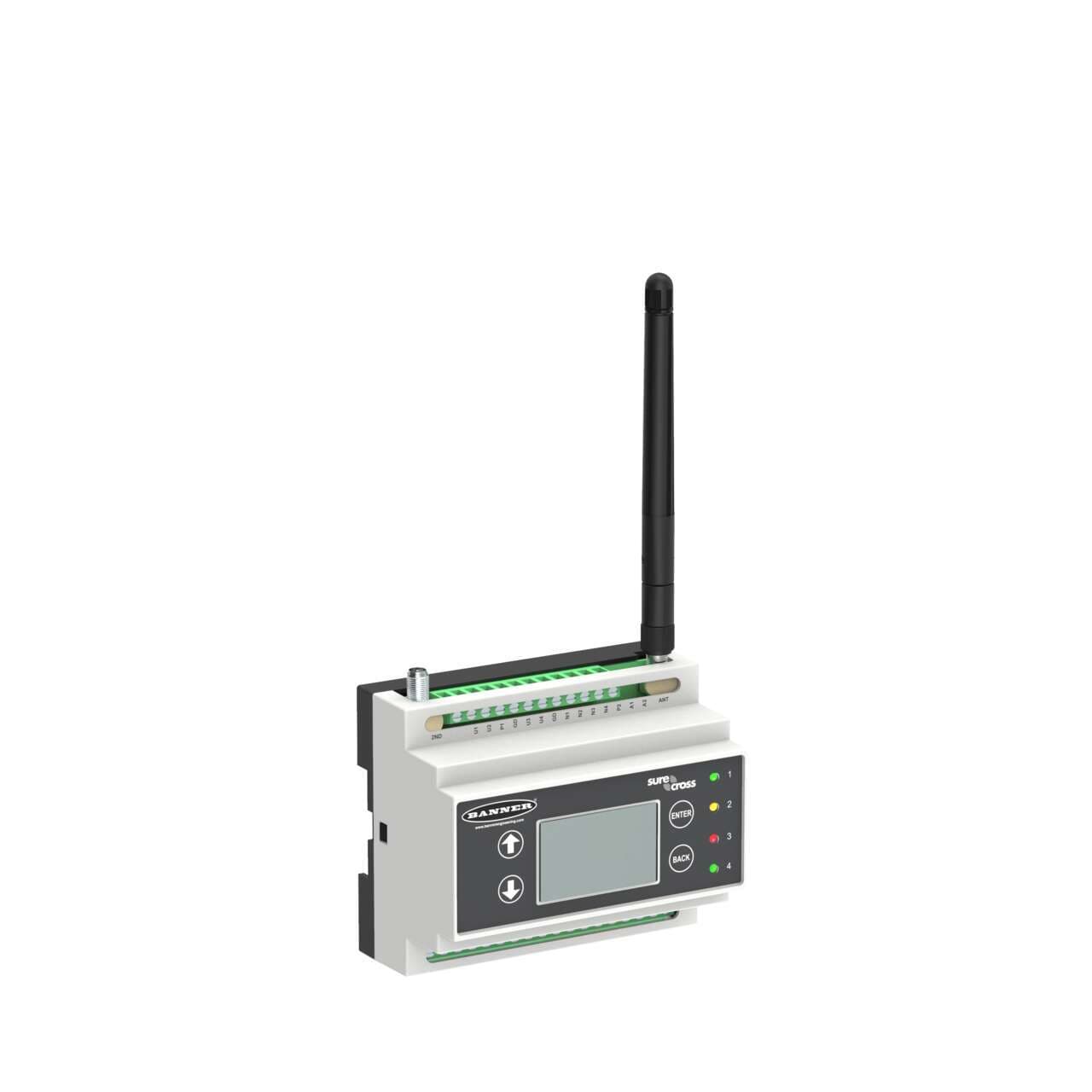

DXM1000-B1R4 Banner I/O Modules

DXM1000-B1R4 on Powermatic Associates
Banner

Part#:DXM1000-B1R4

Alt. Part#:807403

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM1000 Controller; MultiHop Radio 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Wireless
    Yes
  • Wireless Radio Frequency
    2.4 GHz
  • RS-485
    Yes
  • RS-232
    Yes
  • PROFINET
    Yes
  • Modbus/TCP
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Feature: Hazardous Area
    No
  • Dimension Length (mm)
    100
  • On-Board Memory (MB)
    16
  • Processing Speed (MHz)
    300
  • Application: Indicator Light
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Tree Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Star Topology
    Yes
  • LCD Display
    Yes
  • Relative Humidity
    95%
  • Min Temp Operating Conditions
    -20
  • Max Temp Operating Conditions
    60
  • Environmental Rating (IP)
    IP20
  • Power Supply
    12-30 V dc
  • Input Details
    4 Universal Inputs
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Device Type
    Wireless Controller with MultiHop Radio
  • Analog Outputs
    Yes
  • Analog Inputs
    Yes
  • Input/Output
    Analog & Discrete
  • Power
    DC
  • Housing Style
    External Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM1000-B1R4 on Powermatic Associates is $899.00. Order now.


About the product

Banner Engineering DXM1000-B1R4 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. The device dimensions are H59.5mm x W104mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). This Modbus I/O controller operates with a 300MHz processing speed, utilizing Frequency Hopping Spread Spectrum (FHSS) technology and an M7 processor for efficient data aggregation of sensor and wireless networks. It includes a CAN bus, RJ45 connector for Ethernet, and an RP-SMA connector. The supply voltage requirement is 12-30Vdc (12Vdc-24Vdc nom.). Communication protocols supported are RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The device has a memory capacity of 16MB (on-board) and supports an 8GB SD card. It operates on a 2.4GHz ISM band with a 65mW radio (HE5 MultiHop data radio; worldwide), capable of a maximum transmission distance of 3.2km at nominal emission power.



DXM1000-B1R4 Related Documents

Manufacturer warranty

DXM1000-B1R4 Banner

$899.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$899.00

$899.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality equipment, Banner's product suite includes photoelectric sensors, ultrasonic sensors, vision sensors, and fiber optic assemblies, each designed to enhance operational efficiency and reliability across diverse industries. Banner's sensors are critical components in manufacturing and process environments, helping automate complex tasks with accuracy and speed. Their photoelectric sensors, for instance, are used for detecting the presence or distance of objects with exceptional reliability, ensuring that production lines operate smoothly and efficiently. Ultrasonic sensors provide robust performance in harsh conditions, making them ideal for industries such as food and beverage, automotive, and logistics where environmental challenges are common. A key feature of Banner's offerings is their comprehensive selection of machine safety products, including safety switches, light curtains, emergency stop devices, and safety control modules. These devices play a pivotal role in protecting personnel and equipment from potential hazards, thereby promoting a safer workplace and compliance with stringent safety regulations. In the realm of industrial automation, connectivity is crucial, and Banner excels with its wireless solutions. Their industrial wireless systems enable seamless communication between machines and control systems, facilitating remote monitoring, timely response to system changes, and reduced downtime. This is particularly beneficial for customers looking to adopt smart manufacturing practices as part of Industry 4.0 initiatives. Moreover, Banner's energy-efficient LED lighting products improve visibility and reduce energy consumption within facilities. From task lighting to indication, their lighting solutions contribute to enhanced working conditions and operational savings. By partnering with Banner, Powermatic Associates ensures access to these world-class automation technologies, which not only streamline customer operations but also pave the way for innovation and growth. Our collaboration empowers businesses to implement tailored solutions that boost productivity and maintain competitive advantage. Together with Powermatic Associates' unmatched distribution capabilities and technical support, clients can seamlessly integrate Banner's state-of-the-art products into their automated systems, ensuring optimal performance and operational success.

About the Product Category

Industrial I/O (input/output) modules are critical industrial network components that deliver input signals from a field device, such as a sensor or actuator, to a controller.

I/O Modules

Relevant products

FAQ

What is the price of DXM1000-B1R4?
The price of DXM1000-B1R4 on Powermatic Associates is $899.00. Order now.

Out if stock but available for backorder.

DXM1000 Controller; MultiHop Radio 2.4 GHz 65 mW; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller
