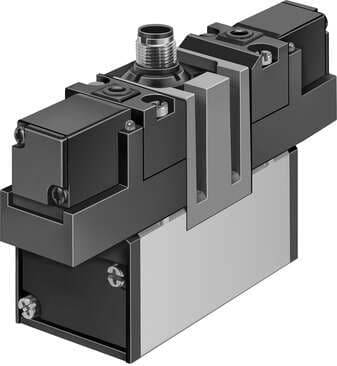

184512 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Pneumatic working port
  Sub-base, size 3 as per ISO 5599-1 G1/2
• Ambient temperature
  -10 °C ... 50 °C
• Pneumatic connection 4
  Sub-base, size 3 as per ISO 5599-1
• Valve function
  5/3, closed
• Degree of protection
  IP65
• Width dimension
  71 mm
• Sealing principle
  Soft
• Mounting position
  Any
• Switching time off
  130 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -10 °C ... 50 °C
• Electrical connection
  M12x1 Central plug
• Pneumatic connection 2
  Sub-base, size 3 as per ISO 5599-1
• Pneumatic connection 5
  Sub-base, size 3 as per ISO 5599-1
• Standard nominal flow rate
  4100 l/min
• Operating voltage
  24V DC
• Operating pressure
  3 bar ... 10 bar
• Manual override
  Non-detenting
• Flow direction
  Non-reversible
Coil characteristics
24 V DC: 2.5 W
Type of mounting
With through-hole
Pneumatic connection 3
Sub-base, size 3 as per ISO 5599-1
Housing material
Die-cast aluminum
Reset method
Mechanical spring
Exhaust air function
With flow control option
ISO code
356
Symbol
00991080
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Width
65 mm
Nominal width
14.5 mm
Type code
MEBH
Type of control
Pilot-controlled
On switching time
38 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
Sub-base, size 3 as per ISO 5599-1
Seals material
NBR
