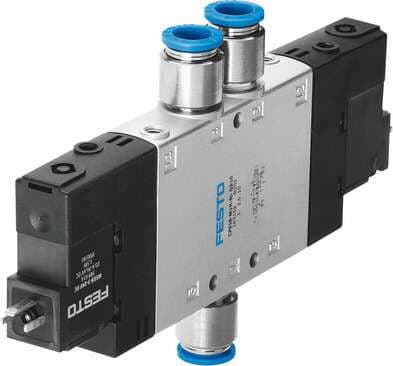

163795 Festo Directional Control Valves

Product Details

• Mounting position
  Any
• Flow direction
  Non-reversible
• Symbol
  00991013
• Actuation type
  Electrical
• Operating voltage
  230V AC
• Exhaust air function
  With flow control option
• Manual override
  Detenting via accessory Non-detenting
• Lap
  Overlap
• Width
  18 mm
• Valve function
  5/2, bistable
• Pneumatic working port
  QS-8
• Design
  Piston gate valve
• Maritime classification
  See certificate
• Standard nominal flow rate
  850 l/min
• Nominal width
  8 mm
• Pilot air supply port
  Internal
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot exhaust air port 84
  M5
• Pneumatic connection 2
  QS-8
Pneumatic connection 4
QS-8
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Type of control
Pilot-controlled
Valve position ID
Label holder
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-8
Note on materials
RoHS-compliant
Operating pressure
2 bar ... 10 bar
Certification
c UL us - Recognized (OL)
Type code
CPE18
Changeover time
13 ms
Max. negative test pulse on 1 signal
3100 µs
Permissible voltage fluctuations
-15 % / +10 %
Pilot exhaust air port 82
M5
Pilot air port 12
M5
Pilot air port 14
M5
Max. positive test pulse with 0 signal
3300 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 50 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Seals material
NBR
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Form C
Pneumatic connection 3
G1/4
Pneumatic connection 5
G1/4
Housing material
Die-cast aluminum
