163798 Festo Directional Control Valves
Part#:163798
Alt. Part#:CPE18-M3H-5LS-QS-8
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

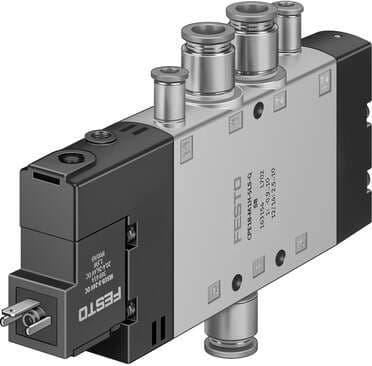

solenoid valve CPE18-M3H-5LS-QS-8 High component density Valve function: 5/2 monostable, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 850 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Valve function 5/2, monostable
- Width 18 mm
- Degree of protection IP65 as per IEC 60529
- Mounting position Any
- Valve position ID Label holder
- Max. positive test pulse with 0 signal 3300 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Actuation type Electrical
- Operating pressure -0.9 bar ... 10 bar
- Type code CPE18
- Manual override Detenting via accessory Non-detenting
- Flow direction Reversible
- On switching time 26 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting With through-hole
- Pneumatic connection 3 G1/4
- Lap Overlap
- Pneumatic working port QS-8
- Design Piston gate valve
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- Symbol 00991026
- Duty cycle 100%
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 1 QS-8
- Standard nominal flow rate 850 l/min
- Certification c UL us - Recognized (OL)
- Nominal width 8 mm
- Pilot air supply port External
- Switching time off 20 ms
- Max. negative test pulse on 1 signal 3100 µs
- Permissible voltage fluctuations -15 % / +10 %
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot air port 12 M5
- Pneumatic connection 2 QS-8
- Housing material Die-cast aluminum
- Maritime classification See certificate
- Operating voltage 230V AC
- Reset method Pneumatic spring
- Sealing principle Soft
- Pilot pressure 2.5 bar ... 10 bar
- Coil characteristics 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 84 M5
- Pilot exhaust air port 82 M5
- Seals material NBR
- Pneumatic connection 5 G1/4
- Temperature of medium -5 °C ... 50 °C
- Electrical connection Form C
- Pilot air port 14 M5
- Pneumatic connection 4 QS-8
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
