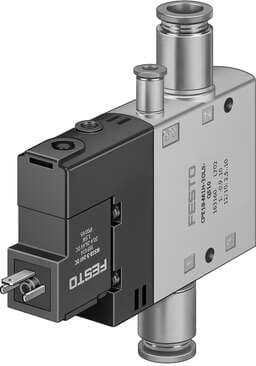

163796 Festo Directional Control Valves

Product Details

• Switching time off
  18 ms
• Sealing principle
  Soft
• Actuation type
  Electrical
• Degree of protection
  IP65 as per IEC 60529
• Valve function
  3/2, open, monostable
• Pneumatic working port
  QS-8
• Design
  Piston gate valve
• Nominal width
  8 mm
• Type of control
  Pilot-controlled
• Flow direction
  Non-reversible
• Pilot pressure
  2.5 bar ... 10 bar
• On switching time
  28 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic connection 1
  QS-8
• Note on materials
  RoHS-compliant
• Operating pressure
  -0.9 bar ... 10 bar
• Certification
  c UL us - Recognized (OL)
• Manual override
  Detenting via accessory Non-detenting
Valve position ID
Label holder
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Type of mounting
With through-hole
Pneumatic connection 2
QS-8
Maritime classification
See certificate
Width
18 mm
Reset method
Pneumatic spring
Type code
CPE18
Pilot air supply port
External
Symbol
00991402
Duty cycle
100%
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82
M5
Pneumatic connection 3
G1/4
Lap
Overlap
Standard nominal flow rate
850 l/min
Operating voltage
230V AC
Mounting position
Any
Max. positive test pulse with 0 signal
3300 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Pilot air port 12
M5
Housing material
Die-cast aluminum
Max. negative test pulse on 1 signal
3100 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Electrical connection
Form C
Seals material
NBR
