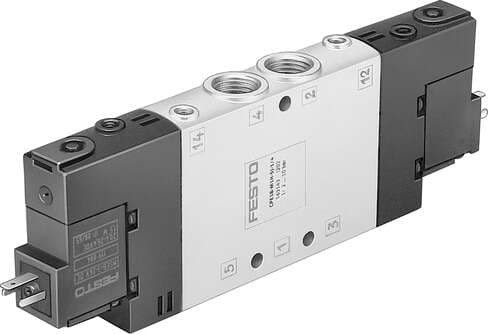

163763 Festo Directional Control Valves

Product Details

• Valve function
  5/2, bistable
• Standard nominal flow rate
  1500 l/min
• Operating pressure
  2 bar ... 10 bar
• Exhaust air function
  With flow control option
• Manual override
  Detenting via accessory Non-detenting
• Valve position ID
  Label holder
• Duty cycle
  100%
• Temperature of medium
  -5 °C ... 50 °C
• Electrical connection
  Form C
• Pneumatic connection 1
  G1/4
• Pilot air port 12
  M5
• Housing material
  Die-cast aluminum
• Type code
  CPE18
• Nominal width
  8 mm
• Pilot air supply port
  Internal
• Changeover time
  13 ms
• Max. negative test pulse on 1 signal
  3100 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot air port 14
  M5
Pneumatic connection 5
G1/4
Maritime classification
See certificate
Pneumatic working port
G1/4
Design
Piston gate valve
Flow direction
Non-reversible
Max. positive test pulse with 0 signal
3300 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
270 g
Pilot exhaust air port 82
M5
Pneumatic connection 3
G1/4
Lap
Overlap
Actuation type
Electrical
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Symbol
00991013
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot exhaust air port 84
M5
Pneumatic connection 2
G¼
Note on materials
RoHS-compliant
Width
18 mm
Operating voltage
110V AC
Certification
c UL us - Recognized (OL)
Mounting position
Any
Type of control
Pilot-controlled
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 4
G1/4
Seals material
NBR
