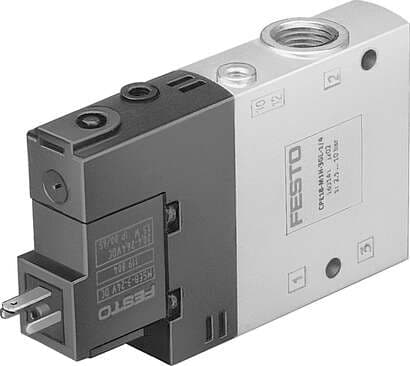

163761 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  G1/4
• Degree of protection
  IP65 as per IEC 60529
• Type code
  CPE18
• Manual override
  Detenting via accessory Non-detenting
• Flow direction
  Non-reversible
• Valve position ID
  Label holder
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Housing material
  Die-cast aluminum
• Maritime classification
  See certificate
• Standard nominal flow rate
  1300 l/min
• Reset method
  Pneumatic spring
• Nominal width
  8 mm
• Mounting position
  Any
• Switching time off
  18 ms
• Max. negative test pulse on 1 signal
  3100 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Product weight
  150 g
Pilot exhaust air port 82
M5
Pneumatic connection 3
G1/4
Actuation type
Electrical
Design
Piston gate valve
Sealing principle
Soft
Symbol
00991655
Max. positive test pulse with 0 signal
3300 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M5
Note on materials
RoHS-compliant
Operating voltage
110V AC
Operating pressure
2.5 bar ... 10 bar
Type of control
Pilot-controlled
Duty cycle
100%
Permissible voltage fluctuations
-15 % / +10 %
Electrical connection
Form C
Pneumatic connection 2
G¼
Valve function
3/2, closed, monostable
Width
18 mm
Certification
c UL us - Recognized (OL)
Pilot air supply port
Internal
On switching time
28 ms
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
G1/4
Seals material
NBR
