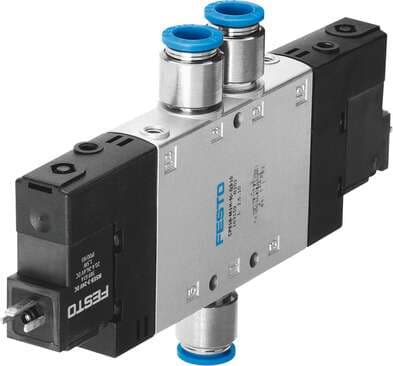

163771 Festo Directional Control Valves

Product Details

• Pilot exhaust air port 84
  M5
• Pneumatic connection 1
  QS-8
• Pneumatic connection 2
  QS-8
• Seals material
  NBR
• Maritime classification
  See certificate
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• Duty cycle
  100%
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Valve function
  5/2, bistable
• Actuation type
  Electrical
• Degree of protection
  IP65 as per IEC 60529
• Type code
  CPE18
• Pilot air supply port
  Internal
• Changeover time
  13 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Pneumatic connection 3
  G1/4
Housing material
Die-cast aluminum
Pneumatic working port
QS-8
Design
Piston gate valve
Manual override
Detenting via accessory Non-detenting
Mounting position
Any
Valve position ID
Label holder
Max. negative test pulse on 1 signal
3100 µs
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82
M5
Pneumatic connection 5
G1/4
Lap
Overlap
Standard nominal flow rate
850 l/min
Operating pressure
2 bar ... 10 bar
Nominal width
8 mm
Type of control
Pilot-controlled
Symbol
00991013
Max. positive test pulse with 0 signal
3300 µs
Permissible voltage fluctuations
-15 % / +10 %
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Electrical connection
Form C
Pilot air port 12
M5
Note on materials
RoHS-compliant
Width
18 mm
Operating voltage
110V AC
Exhaust air function
With flow control option
Flow direction
Non-reversible
Coil characteristics
110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot air port 14
M5
Pneumatic connection 4
QS-8
