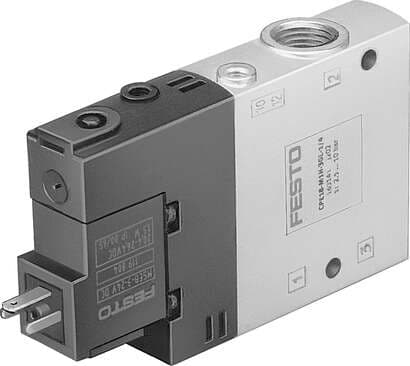

163788 Festo Directional Control Valves

Product Details

• Pilot air port 12
  M5
• Valve function
  3/2, open, monostable
• Width
  18 mm
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• Valve position ID
  Label holder
• On switching time
  28 ms
• Duty cycle
  100%
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  With through-hole
• Electrical connection
  Form C
• Housing material
  Die-cast aluminum
• Actuation type
  Electrical
• Operating voltage
  230V AC
• Type code
  CPE18
• Manual override
  Detenting via accessory Non-detenting
• Pilot pressure
  2.5 bar ... 10 bar
• Max. negative test pulse on 1 signal
  3100 µs
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
150 g
Pneumatic connection 1
G1/4
Note on materials
RoHS-compliant
Lap
Overlap
Pneumatic working port
G1/4
Degree of protection
IP65 as per IEC 60529
Pilot air supply port
External
Switching time off
18 ms
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 3
G1/4
Operating pressure
-0.9 bar ... 10 bar
Mounting position
Any
Type of control
Pilot-controlled
Flow direction
Non-reversible
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot exhaust air port 82
M5
Pneumatic connection 2
G¼
Maritime classification
See certificate
Standard nominal flow rate
1700 l/min
Reset method
Pneumatic spring
Nominal width
8 mm
Symbol
00991402
Max. positive test pulse with 0 signal
3300 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Seals material
NBR
