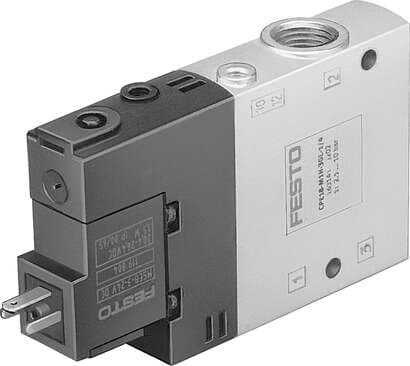

163765 Festo Directional Control Valves

Product Details

• Valve function
  3/2, closed, monostable
• Width
  18 mm
• Operating pressure
  -0.9 bar ... 10 bar
• Degree of protection
  IP65 as per IEC 60529
• Pilot air supply port
  External
• On switching time
  28 ms
• Coil characteristics
  110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Product weight
  150 g
• Pilot exhaust air port 82
  M5
• Lap
  Overlap
• Reset method
  Pneumatic spring
• Mounting position
  Any
• Type of control
  Pilot-controlled
• Switching time off
  18 ms
• Max. positive test pulse with 0 signal
  3300 µs
• Type of mounting
  With through-hole
• Pneumatic connection 3
  G1/4
• Seals material
  NBR
• Actuation type
  Electrical
Pneumatic working port
G1/4
Certification
c UL us - Recognized (OL)
Sealing principle
Soft
Symbol
00991405
Pilot pressure
2.5 bar ... 10 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M5
Operating voltage
110V AC
Manual override
Detenting via accessory Non-detenting
Flow direction
Non-reversible
Max. negative test pulse on 1 signal
3100 µs
Permissible voltage fluctuations
-15 % / +10 %
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
G1/4
Housing material
Die-cast aluminum
Maritime classification
See certificate
Standard nominal flow rate
1300 l/min
Design
Piston gate valve
Nominal width
8 mm
Type code
CPE18
Valve position ID
Label holder
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Electrical connection
Form C
Pneumatic connection 2
G¼
Note on materials
RoHS-compliant
