TM18VP6RQ8
Banner
Product Lifecycle: Active

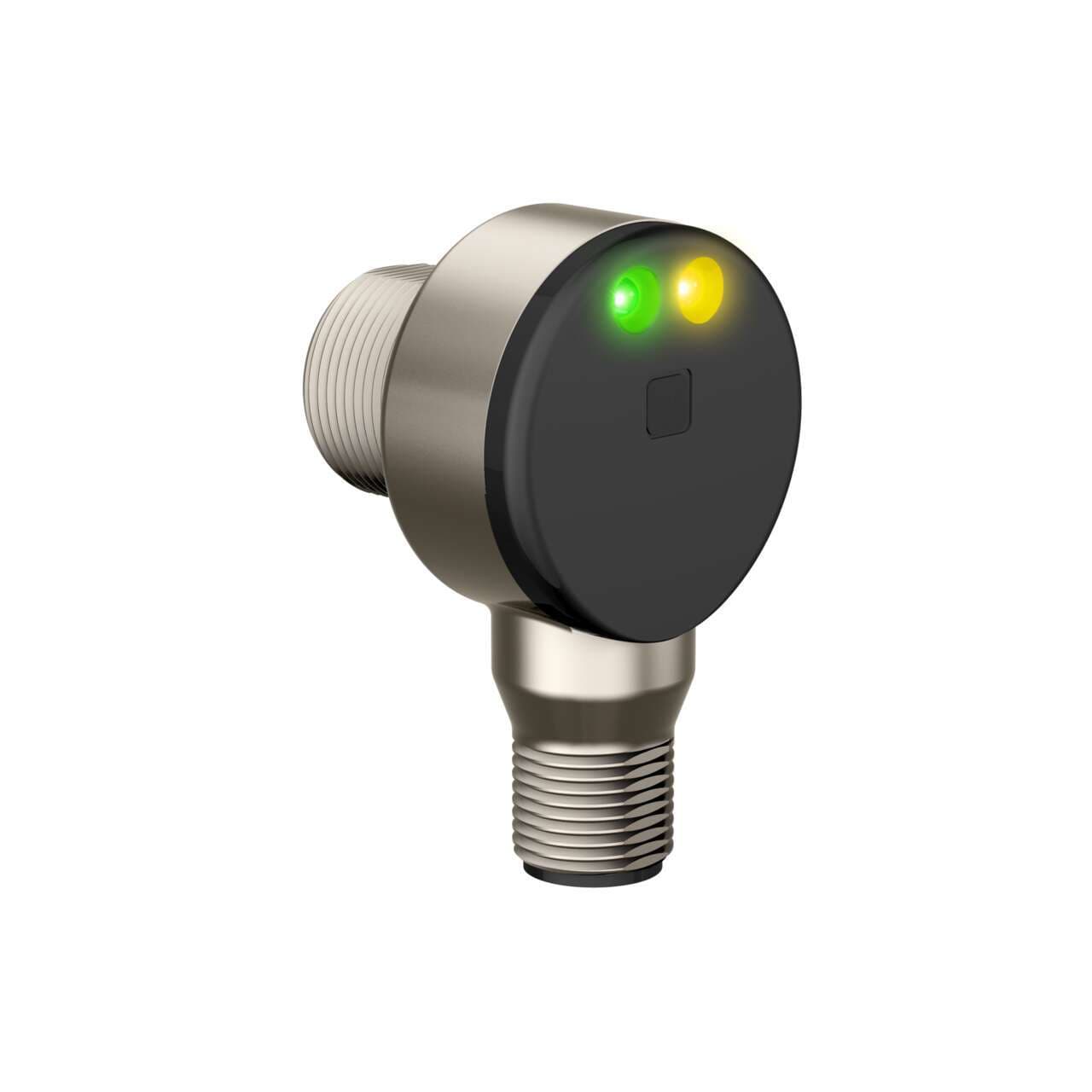

Banner Engineering TM18VP6RQ8 is a photo-electric sensor designed for heavy-duty applications, part of the TM18 series. This sensor operates as a receiver in a through-beam system, featuring a nickel-plated die-cast zinc housing with a polycarbonate lens. It is equipped with a 4-pin Euro-style M12 connector for connectivity and supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The TM18VP6RQ8 offers a threaded mount for installation, can operate within an ambient air temperature range of -40 to +70 degrees Celsius, and boasts a protection rating of IP67, IP69K, and NEMA 6. Its M18 cylindrical threaded/barrel shape is complemented by a single digital output (PNP transistor), a sensing distance of up to 20 meters, and a visible red light for operation. The sensor's response time is 1.5ms, and it supports both Light-ON and Dark-ON operating modes.

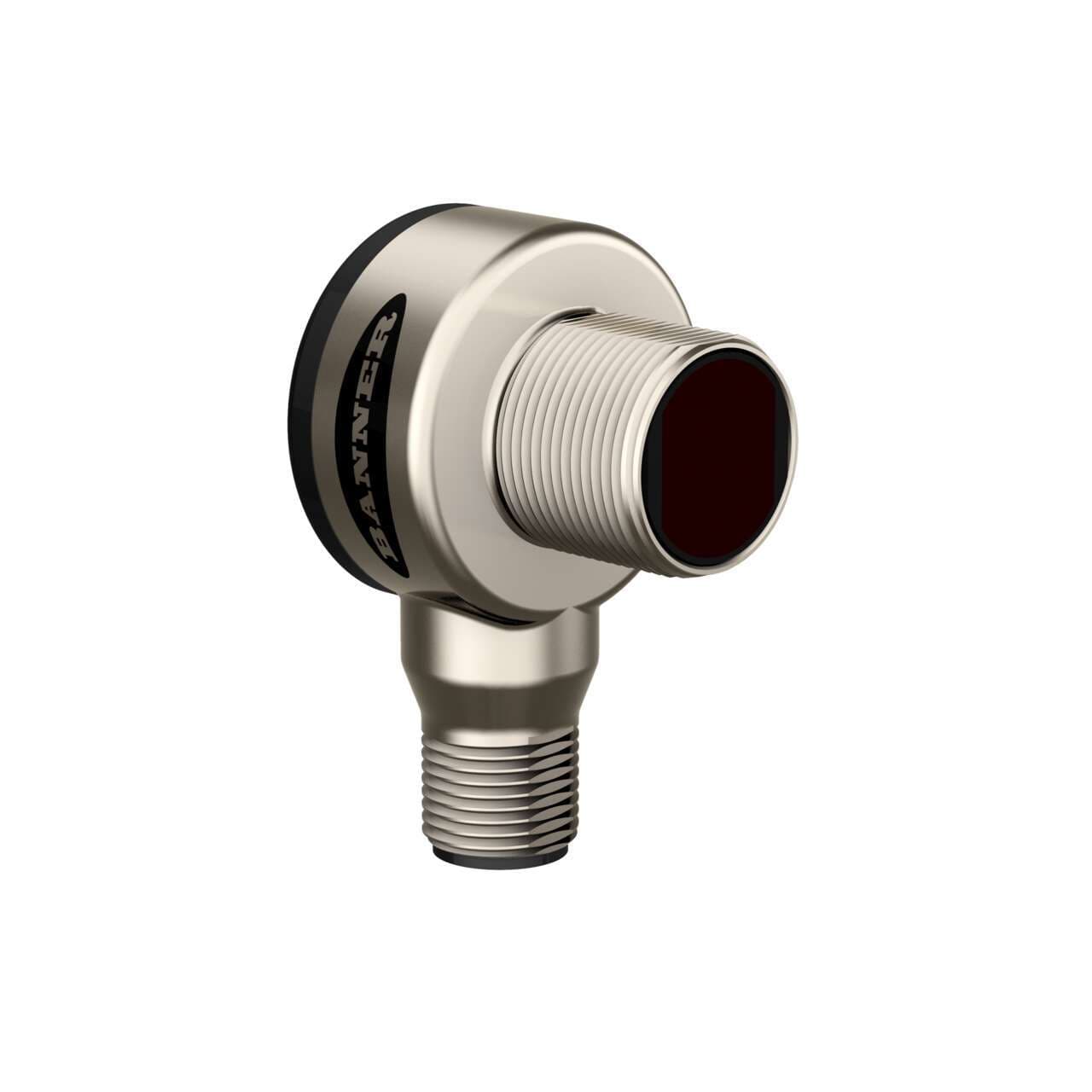

![TM18VP6RQ8](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2F290e86c2-6d64-4d85-b878-d009e6dbf4d4.jpeg&w=3840&q=75)
Banner Engineering TM18VP6RQ8 is a photo-electric sensor designed for heavy-duty applications, part of the TM18 series. This sensor operates as a receiver in a through-beam system, featuring a nickel-plated die-cast zinc housing with a polycarbonate lens. It is equipped with a 4-pin Euro-style M12 connector for connectivity and supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The TM18VP6RQ8 offers a threaded mount for installation, can operate within an ambient air temperature range of -40 to +70 degrees Celsius, and boasts a protection rating of IP67, IP69K, and NEMA 6. Its M18 cylindrical threaded/barrel shape is complemented by a single digital output (PNP transistor), a sensing distance of up to 20 meters, and a visible red light for operation. The sensor's response time is 1.5ms, and it supports both Light-ON and Dark-ON operating modes.
- IO LinkNo
- DeviceNetNo
- Feature: AudibleNo
- Feature: Timing (Hold/Delay)No
- Feature: EncapsulatedYes
- Feature: Hazardous AreaNo
- Feature: Chemical ResistantNo
- IndicatorLEDs
- Opposed Mode Emitter/ReceiverReceiver
- Feature: Washdown RatedYes
- Barrel Diameter (mm)18
- AdjustmentsN/A
- Lens MaterialPolycarbonate
- Max Op. Relative Humidity [%]90% @ 50°C
- NEMA RatingNEMA 6
- Repeatability (µs)190
- Number of Pins4
- IP RatingIP67, IP69
- Delay at Power-up (ms)100
- Special Feature: Water DetectionNo
- Output response time (ms)1.5 ON/0.75 OFF
- Max Op. Temp. (°C)70
- Special Feature: Intrinsically SafeNo
- Special Feature: Remote TeachNo
- OperationLight/Dark Operate
- Min Op. Temp. (°C)-40
- ConnectionIntegral QD
- Quick Disconnect TypeM12 (Euro)
- Power Supply/Supply Voltage10-30 V dc
- Sensing Mode (General)Opposed
- Housing StyleBarrel
- Sensing Mode (Detailed)Receiver
- Input/OutputDiscrete
- Primary Housing MaterialZinc Die-Cast with Nickel-Plating
- Max Sensing Distance (mm)20000
- OutputsPNP
- PowerDC
- Sensing BeamVisible Red LED
