TM18VN6FF100Q8 Banner Proximity Sensors

TM18VN6FF100Q8 on Powermatic Associates
Banner

Part#:TM18VN6FF100Q8

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:42050

Product Lifecycle:Active

Get a quick Quote!

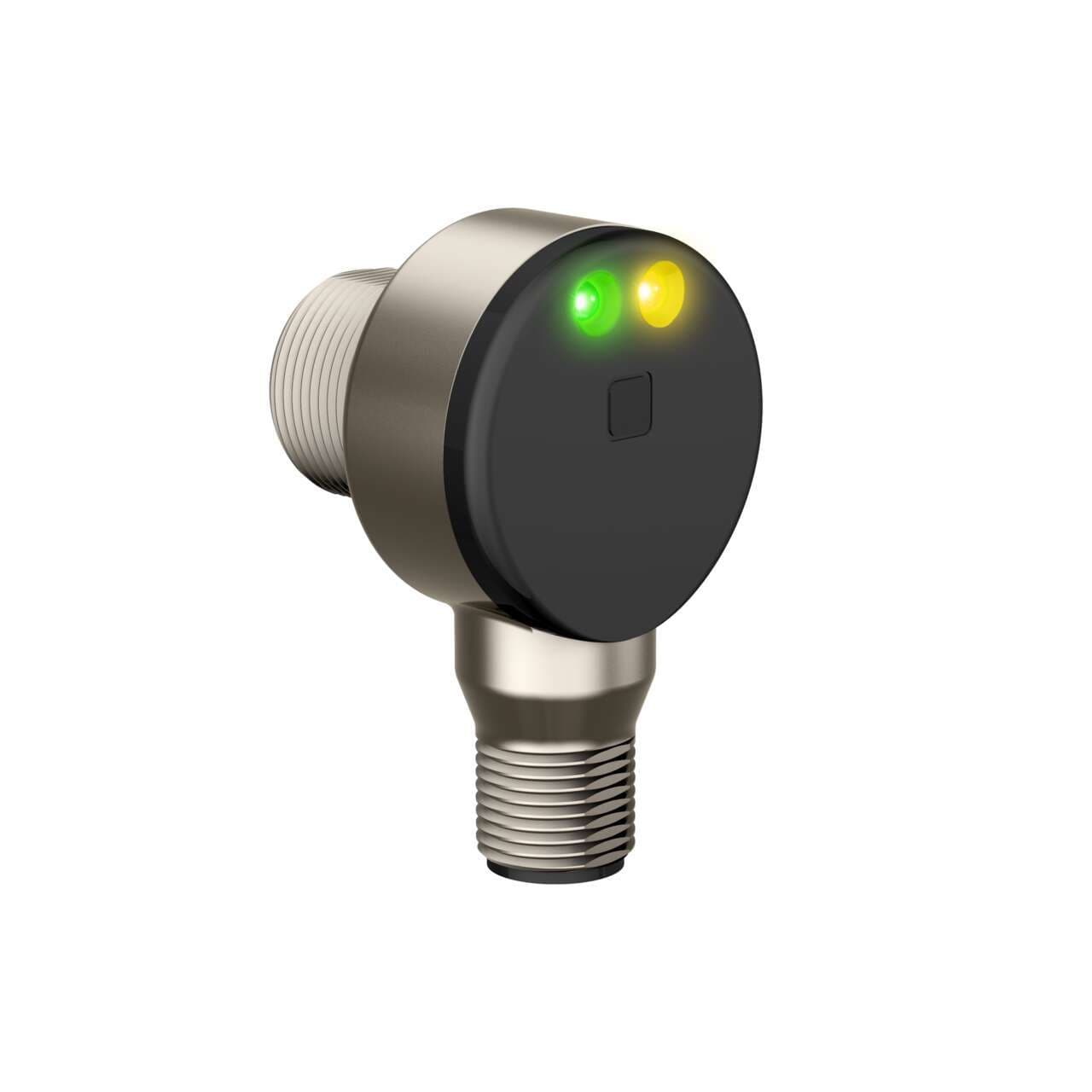

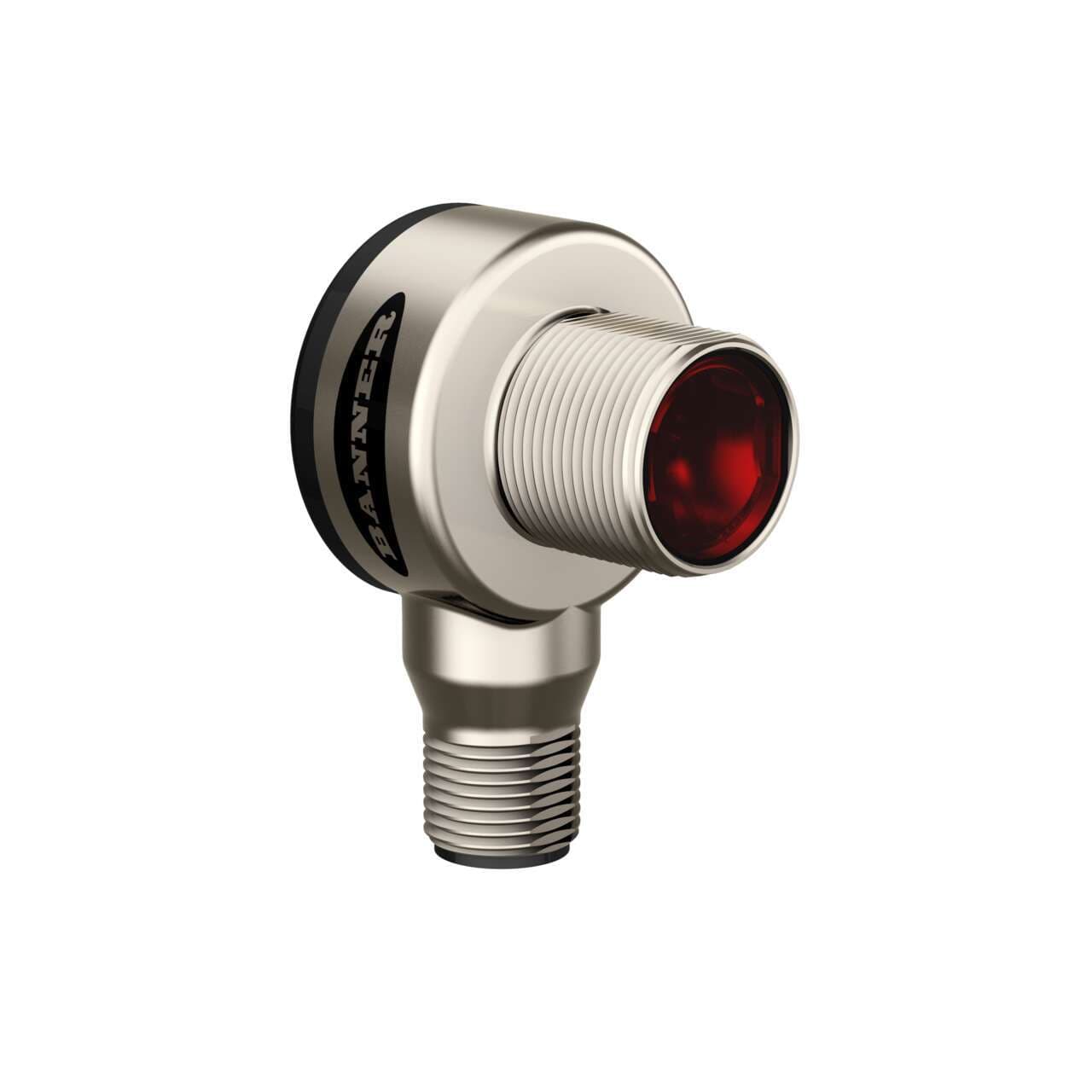

EZ BEAM TM18: Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: NPN Complementary; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TM18VN6FF100Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Repeatability (µs)
    185
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    70
  • Min Op. Temp. (°C)
    -40
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Connection
    Integral QD
  • Outputs
    NPN
  • Housing Style
    Barrel
  • Max Sensing Distance (mm)
    100
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Power
    DC
  • Input/Output
    Discrete
  • Sensing Beam
    Visible Red LED
  • Primary brand
    Banner Engineering
  • Main function
    Sensor (Photo-electric)
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Wavelength
    660 nm
  • Response time
    3ms / 0.003 s
  • Order code / Manufacturer SKU
    42050
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Degree of protection
    IP69K NEMA 6
  • Light Color
    Visible red
  • Ambient air temperature for operation
    -40...+70 °C
  • Thread size
    M18
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    EZ-BEAM series
  • Sensing distance
    100mm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Sub-range name
    TM18 series
  • Design
    background suppression system heavy-duty
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Cylindrical threaded/barrel
  • Operating mode
    Light-ON Dark-ON
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TM18VN6FF100Q8 Description

Banner Engineering TM18VN6FF100Q8 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity and operates within a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It is built to function in ambient air temperatures ranging from -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor features a cylindrical threaded/barrel shape with an M18 thread size, a digital output via an NPN transistor, and a sensing distance of 100mm. It emits visible red light with a wavelength of 660 nm and responds within 3ms / 0.003 s. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.

Related documents TM18VN6FF100Q8 Specs

TM18VN6FF100Q8 155853.pdf
