TM18AN6FF25 Banner Proximity Sensors

Name: TM18AN6FF25
Brand: Banner

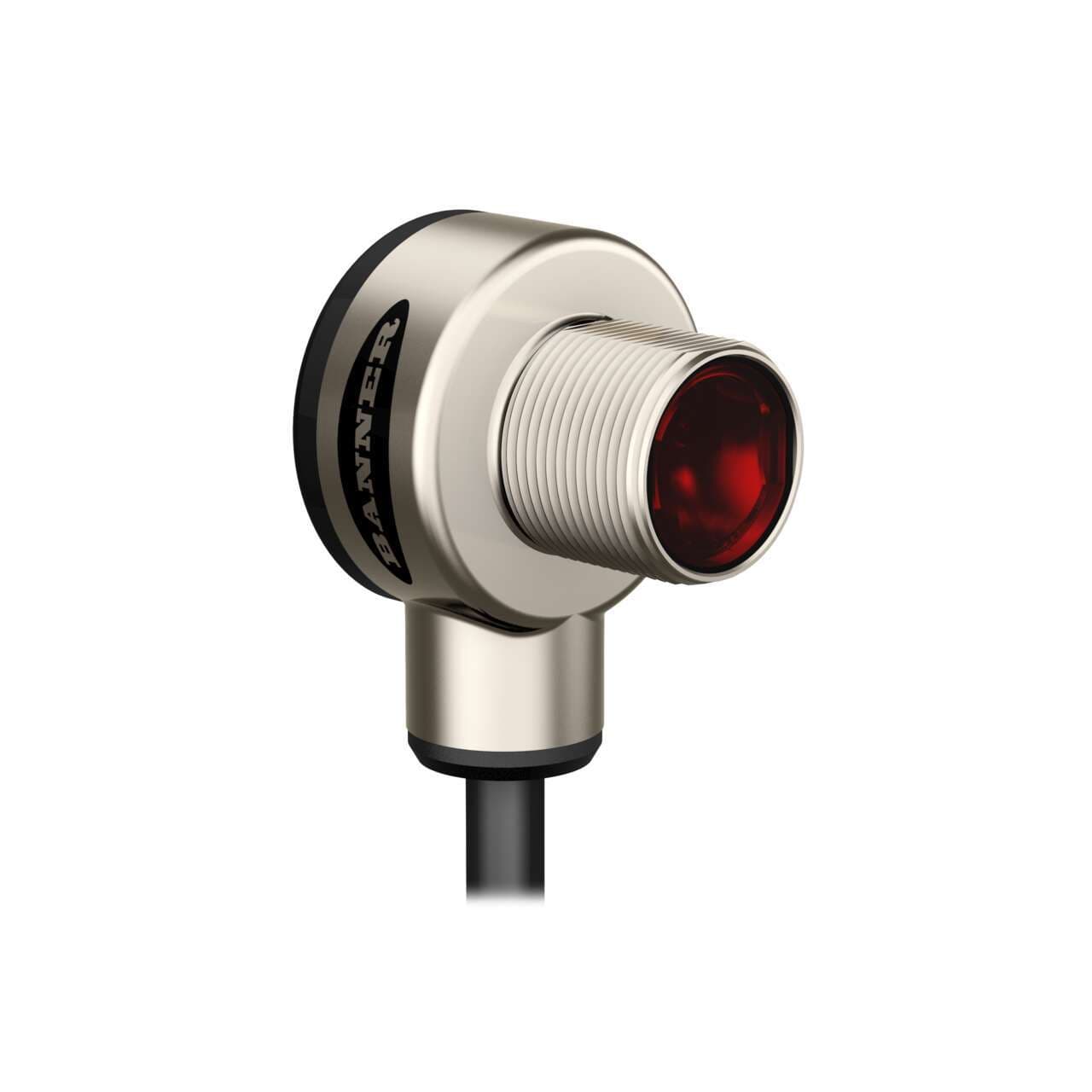

Banner TM18AN6FF25 EZ BEAM TM18: Fixed Field Background Suppression; Range: 25 mm; Input: 10-30 V dc; Outputs: NPN Light Operate; 2 m (6.5 ft) Cable

Part#:TM18AN6FF25

Manufacturer:Banner

Alt. Part#:42028

Product Lifecycle:Active

Get a quick Quote!

EZ BEAM TM18: Fixed Field Background Suppression; Range: 25 mm; Input: 10-30 V dc; Outputs: NPN Light Operate; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TM18AN6FF25 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
158.7572 g
Country Of Origin
US
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Encapsulated
Yes
Feature: Washdown Rated
Yes
Barrel Diameter (mm)
18
Repeatability (µs)
185
IO Link
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
N/A
Lens Material
Acrylic
Indicator
LEDs
Adjustments
N/A
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6
Special Feature: Water Detection
No
Delay at Power-up (ms)
100

Special Feature: Remote Teach

Number of Pins

IP Rating

IP67

Output response time (ms)

3 ON/1.5 OFF

Max Op. Temp. (°C)

Special Feature: Intrinsically Safe

Operation

Light Operate

Min Op. Temp. (°C)

-40

Connection

Cable

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Outputs

NPN

Max Sensing Distance (mm)

Primary Housing Material

Zinc Die-Cast with Nickel-Plating

Input/Output

Discrete

Housing Style

Barrel

Sensing Mode (Detailed)

Background Suppression (Fixed)

Power

Sensing Beam

Visible Red LED

Sensing Mode (General)

Proximity

Cable Length (m)

Sub-range name

TM18 series

Wavelength

660 nm

Primary brand

Banner Engineering

Design

background suppression system heavy-duty

Shape

Cylindrical threaded/barrel

Sensing distance

25mm

Light Color

Visible red

Response time

3ms / 0.003 s

Main function

Sensor (Photo-electric)

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Product series / family name

EZ-BEAM series

Functions

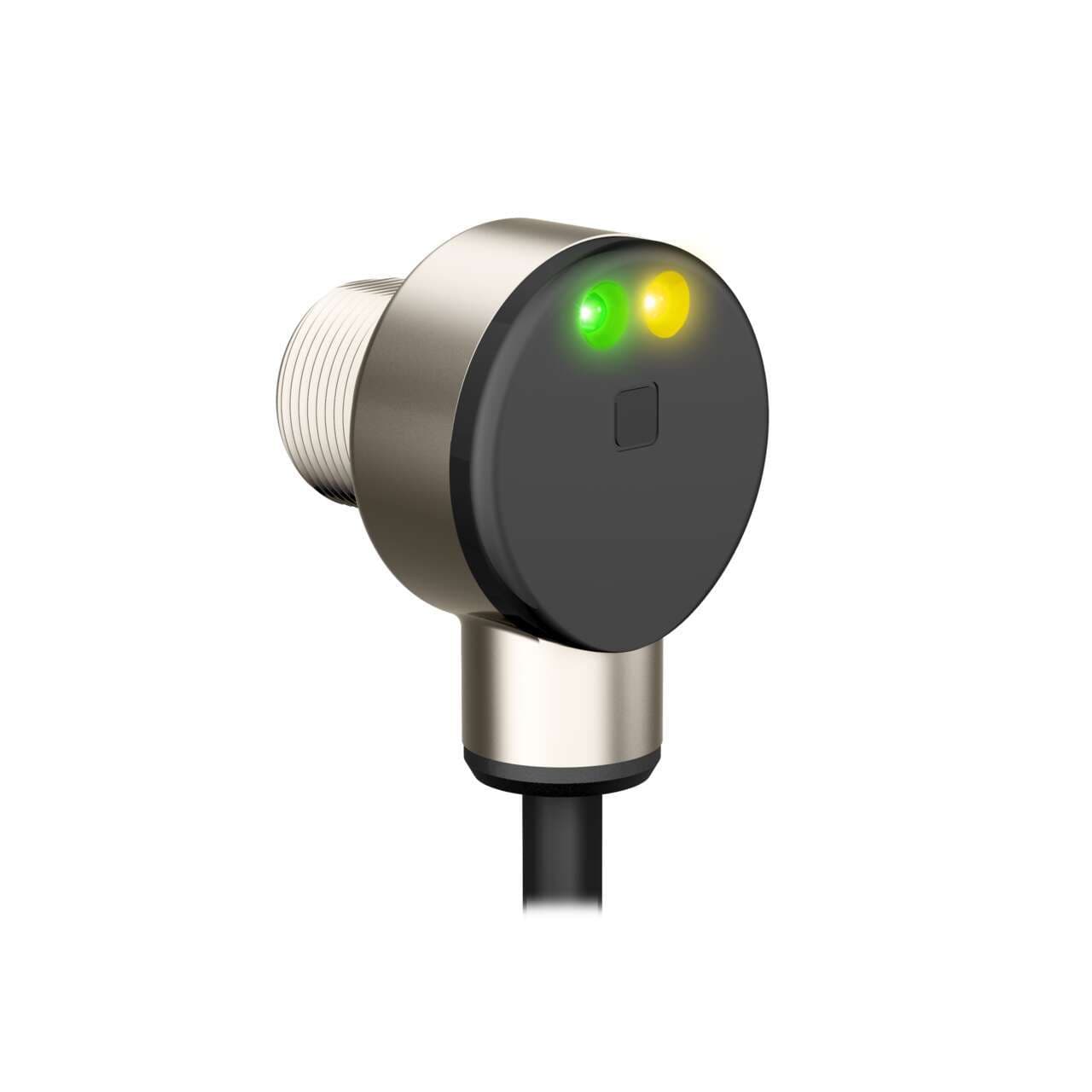

Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Thread size

M18

Degree of protection

IP67 NEMA 6

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Ambient air temperature for operation

-40...+70 °C

Operating mode

Light-ON

Material

Nickel-plate die-cast Zinc housing Acrylic lns.

Order code / Manufacturer SKU

42028

Digital outputs

1 x digital output (NPN transistor)

Compliant with standard(s)

cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TM18AN6FF25 Description

Banner Engineering TM18AN6FF25 is a fixed-field photo-electric sensor within the TM18 series, featuring a background suppression system and a heavy-duty design. It is constructed with a nickel-plated die-cast zinc housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Designed for a wide range of ambient air temperatures, it functions effectively between -40 and +70°C. The TM18AN6FF25 offers a degree of protection rated at IP67 and NEMA 6, making it suitable for challenging environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (NPN transistor) and has a sensing distance of 25mm. It emits visible red light with a wavelength of 660 nm and responds within 3ms / 0.003 s. The operating mode is Light-ON, and it features an M18 thread size for mounting.
