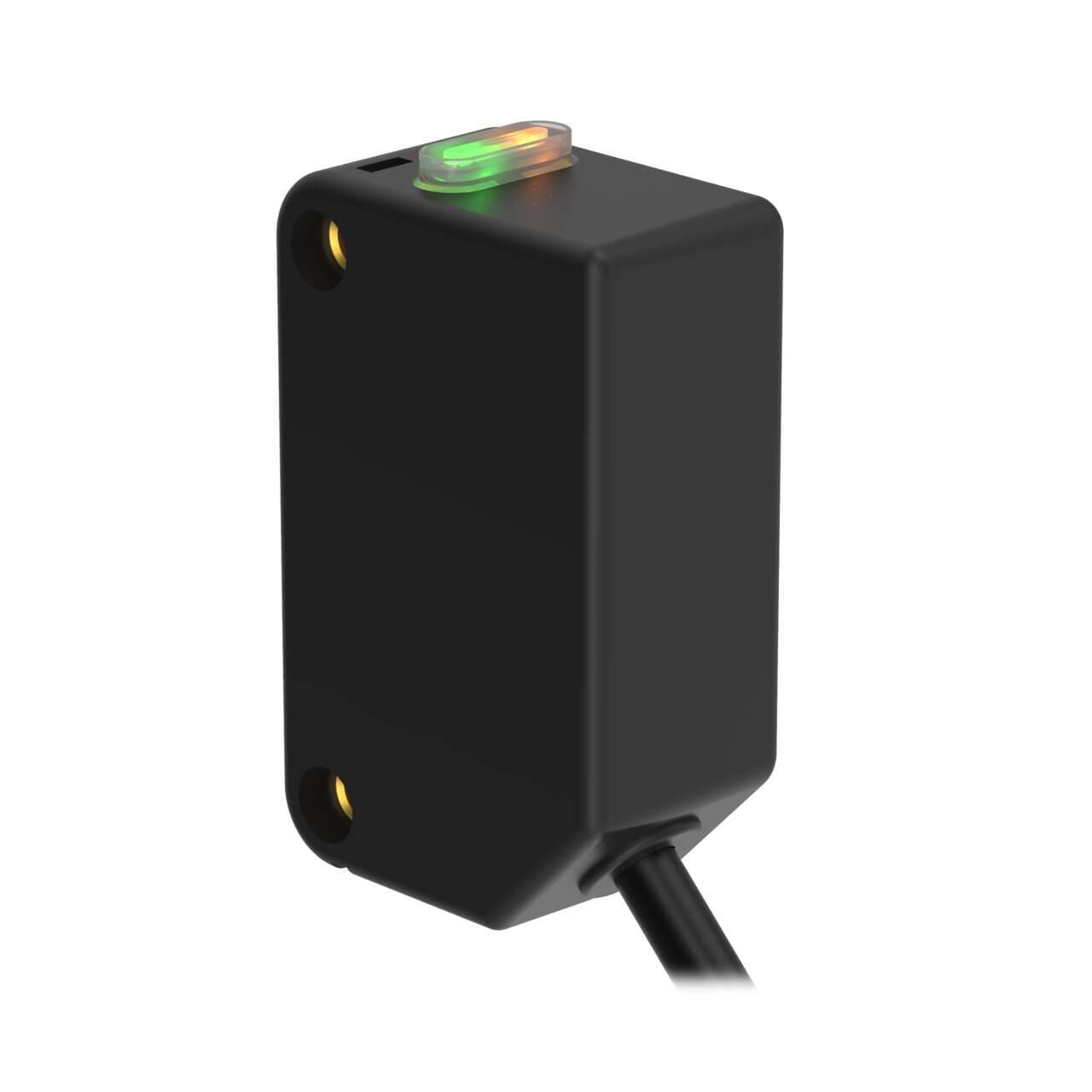

Q20EQPMA Banner Proximity Sensors

Q20EQPMA on Powermatic Associates
Banner
  • Q20EQPMA
  • Q20EQPMA

Part#:Q20EQPMA

Alt. Part#:78183

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM Q20 Series: Emitter (Red); Range: 12 m; Input 10-30 V dc; Output: No output; 150 mm (6 in) M12 PUR Pigtail QD

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Lens Material
    Acrylic
  • EPLAN Cabinet Installable
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Adjustments
    N/A
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Number of Pins
    4
  • Repeatability (µs)
    140
  • Delay at Power-up (ms)
    100
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    655
  • Min Op. Temp. (°C)
    -20
  • Operation
    N/A
  • Max Op. Temp. (°C)
    60
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail PUR QD
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    N/A
  • Power Supply/Supply Voltage
    10-30 V dc
  • Cable Length (m)
    0.15
  • Primary Housing Material
    Thermoplastic
  • Outputs
    N/A
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Rectangular
  • Power
    DC
  • Sensing Mode (Detailed)
    Emitter
  • Max Sensing Distance (mm)
    12000
  • Sensing Beam
    Visible Red LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20EQPMA on Powermatic Associates is $84.00. Order now.


About the product

Banner Engineering Q20EQPMA is a photo-electric sensor designed for through-beam system applications, functioning as an emitter alone. It operates within an ambient air temperature range of -20 to +60 °C. This sensor is part of the Q20 series and features a rectangular shape with a thermoplastic housing, along with a polyurethane (PUR) connector and cable sheath. It is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector. The Q20EQPMA offers a sensing distance of 12m and emits visible red light with a wavelength of 624 nm. It has a response time of 1ms (ON) and 0.6ms (OFF). The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, ensuring its suitability for various industrial environments.
