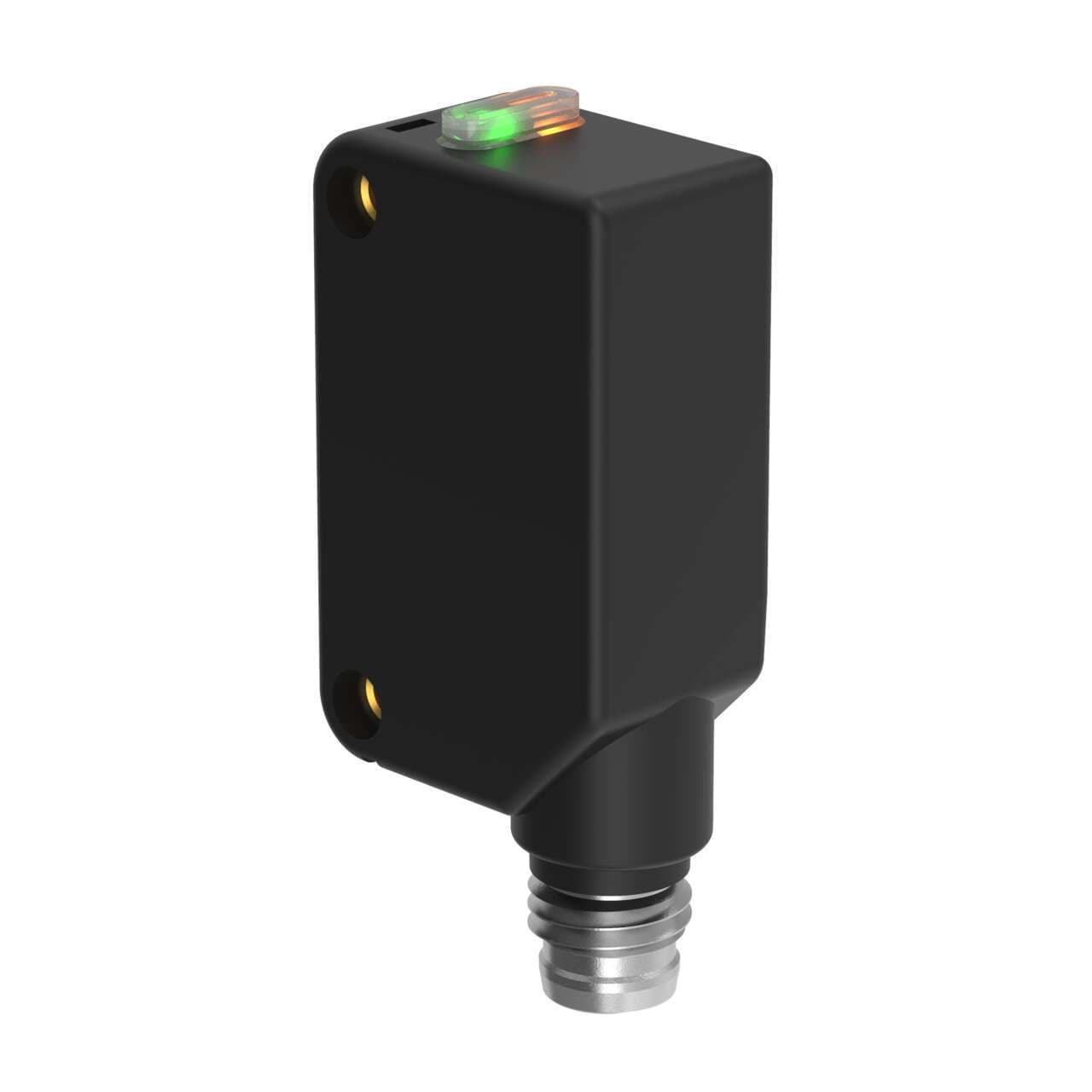

Q20EQ7 Banner Proximity Sensors

Q20EQ7 on Powermatic Associates
Banner
  • Q20EQ7
  • Q20EQ7

Part#:Q20EQ7

Alt. Part#:77782

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM Q20 Series: Emitter (Red); Range: 12 m; Input 10-30 V dc; Output: No output; M8 Integral QD

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • EPLAN Cabinet Installable
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Hazardous Area
    No
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Lens Material
    Acrylic
  • Opposed Mode Emitter/Receiver
    Emitter
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Special Feature: Water Detection
    No
  • Number of Pins
    4
  • Repeatability (µs)
    140
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    655
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    N/A
  • Min Op. Temp. (°C)
    -20
  • Max Op. Temp. (°C)
    60
  • Operation
    N/A
  • Connection
    Integral QD
  • Quick Disconnect Type
    M8 (Pico)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Sensing Distance (mm)
    12000
  • Outputs
    N/A
  • Primary Housing Material
    Thermoplastic
  • Power
    DC
  • Sensing Mode (General)
    Opposed
  • Sensing Mode (Detailed)
    Emitter
  • Housing Style
    Rectangular
  • Sensing Beam
    Visible Red LED
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Functions
    Photo-electric emitter green LED (power ON) amber LED (black (LO) wire conducting)
  • Light Color
    Visible red
  • Compliant with standard(s)
    cURus CE
  • Primary brand
    Banner Engineering
  • Degree of protection
    IP67 NEMA 6
  • Connection type
    Pre-equipped with 4-pin Pico-style M8 connector
  • Sub-range name
    Q20 series
  • Design
    through-beam system / opposed mode
  • Response time
    (ON) 1ms / 0.001 s(OFF) 0.6ms / 0.0006 s
  • Ambient air temperature for operation
    -20...+60 °C
  • Wavelength
    624 nm
  • Order code / Manufacturer SKU
    77782
  • Product series / family name
    WORLD-BEAM series
  • Shape
    Rectangular
  • Material
    thermoplastic housing

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20EQ7 on Powermatic Associates is $57.00. Order now.


About the product

Banner Engineering Q20EQ7 is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the Q20 series. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and is equipped with a 4-pin Pico-style M8 connector for connectivity. It features a rectangular shape with a thermoplastic housing, ensuring a degree of protection rated at IP67 NEMA 6. The Q20EQ7 operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It offers a sensing distance of up to 12 meters and utilizes visible red light with a wavelength of 624 nm. The sensor's response times are 1ms for turning on and 0.6ms for turning off.
