Q20ELQ5 Banner Proximity Sensors

Name: Q20ELQ5
Brand: Banner
Price: 65 USD
Availability: BackOrder

Part#:Q20ELQ5

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:78206

Product Lifecycle:Active

Get a quick Quote!

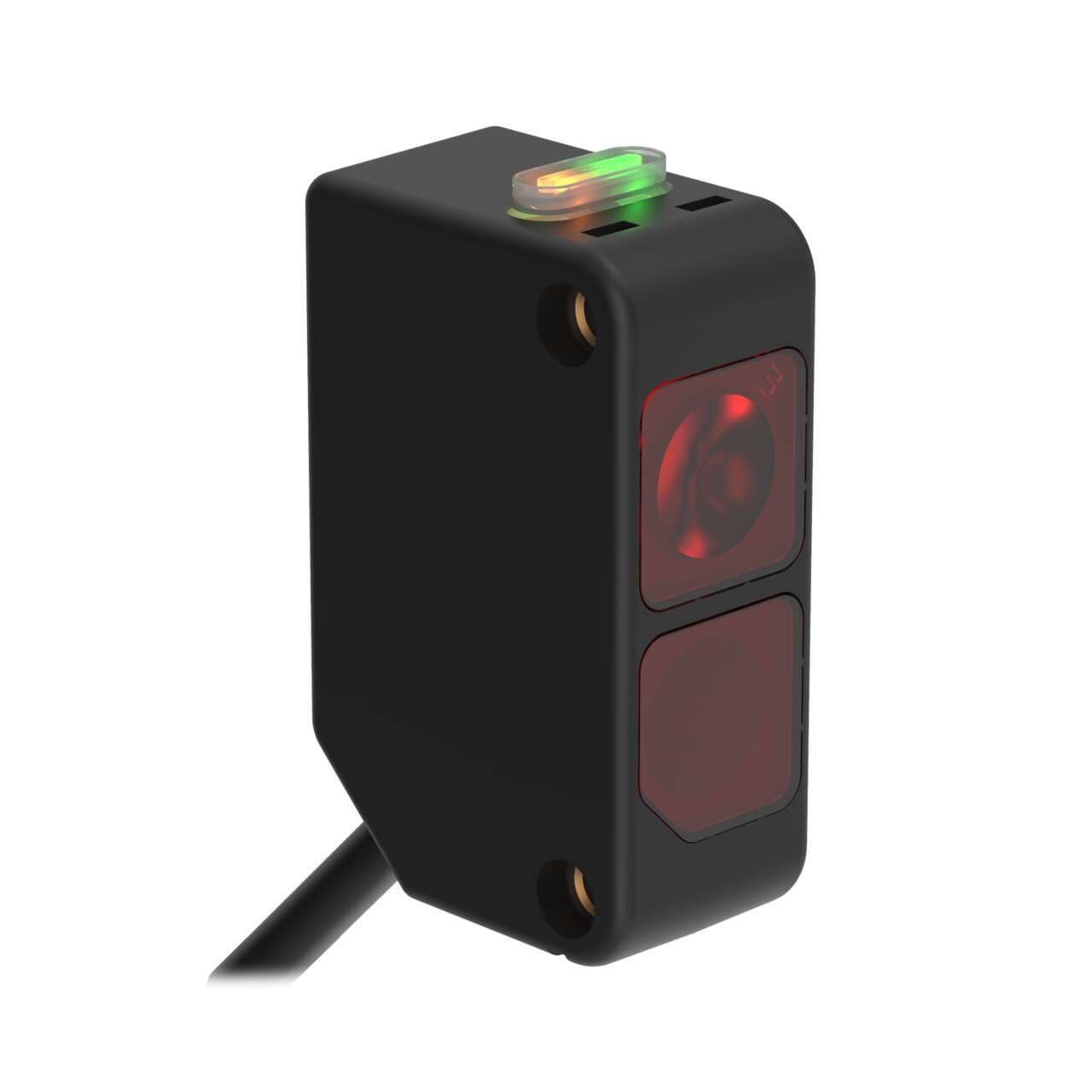

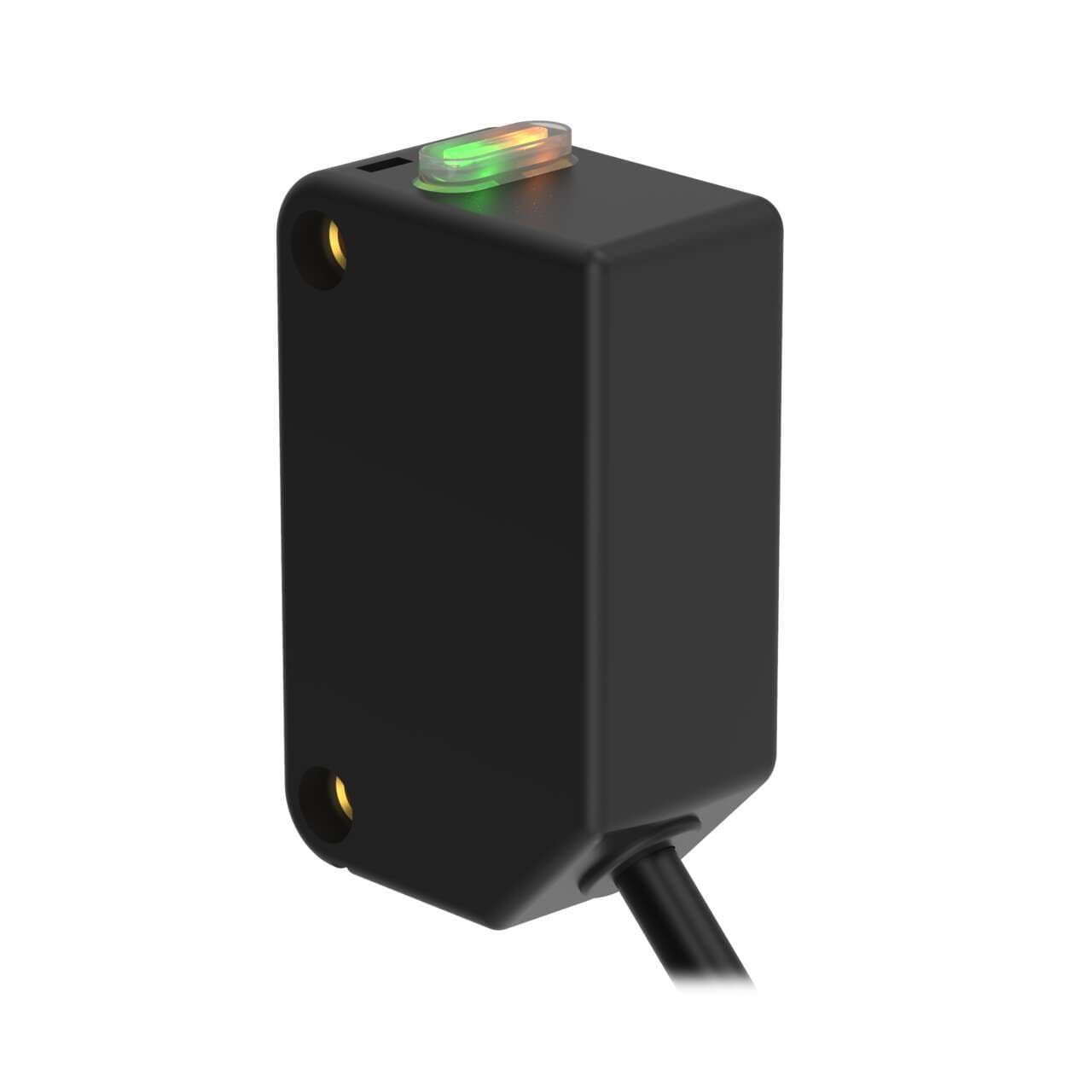

WORLD-BEAM Q20 Series: Long Range Emitter (IR); Range: 20 m; Input 10-30 V dc; Output: No output; 150 mm (6 in) M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20ELQ5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
22.6796 g
Country Of Origin
MX
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Adjustments
N/A
Barrel Diameter (mm)
N/A
NEMA Rating
NEMA 6
Opposed Mode Emitter/Receiver
Emitter
Number of Pins
4
IP Rating
IP67
Delay at Power-up (ms)
100
Special Feature: Water Detection
No
Special Feature: Intrinsically Safe
No
Power Supply/Supply Voltage
10-30 V dc
Connection
Pigtail QD
Quick Disconnect Type
M12 (Euro)
Primary Housing Material
Thermoplastic
Feature: Chemical Resistant
No
Feature: Audible
No

Feature: Hazardous Area

Lens Material

Acrylic

EPLAN Cabinet Installable

IO Link

DeviceNet

Max Op. Relative Humidity [%]

95% @ 50°C

Repeatability (µs)

140

Special Feature: Remote Teach

Output response time (ms)

N/A

Max Op. Temp. (°C)

Operation

N/A

Min Op. Temp. (°C)

-20

Max Sensing Distance (mm)

20000

Outputs

N/A

Power

Housing Style

Rectangular

Sensing Mode (Detailed)

Emitter

Sensing Beam

Infrared LED

Sensing Mode (General)

Opposed

Cable Length (m)

0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20ELQ5 Description

Banner Engineering Q20ELQ5 is a long-range photo-electric sensor designed for through-beam system applications, functioning as the emitter component within the Q20 series. This sensor operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. It features a pre-wired 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. The Q20ELQ5 offers a sensing distance of up to 20 meters and utilizes infrared light with a wavelength of 624 nm for detection. It is characterized by a rapid response time, with an ON time of 1ms (0.001 s) and an OFF time of 0.6ms (0.0006 s). This sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed with a rectangular shape and provides a high degree of protection with an IP67 NEMA 6 rating, making it suitable for a variety of industrial environments.
