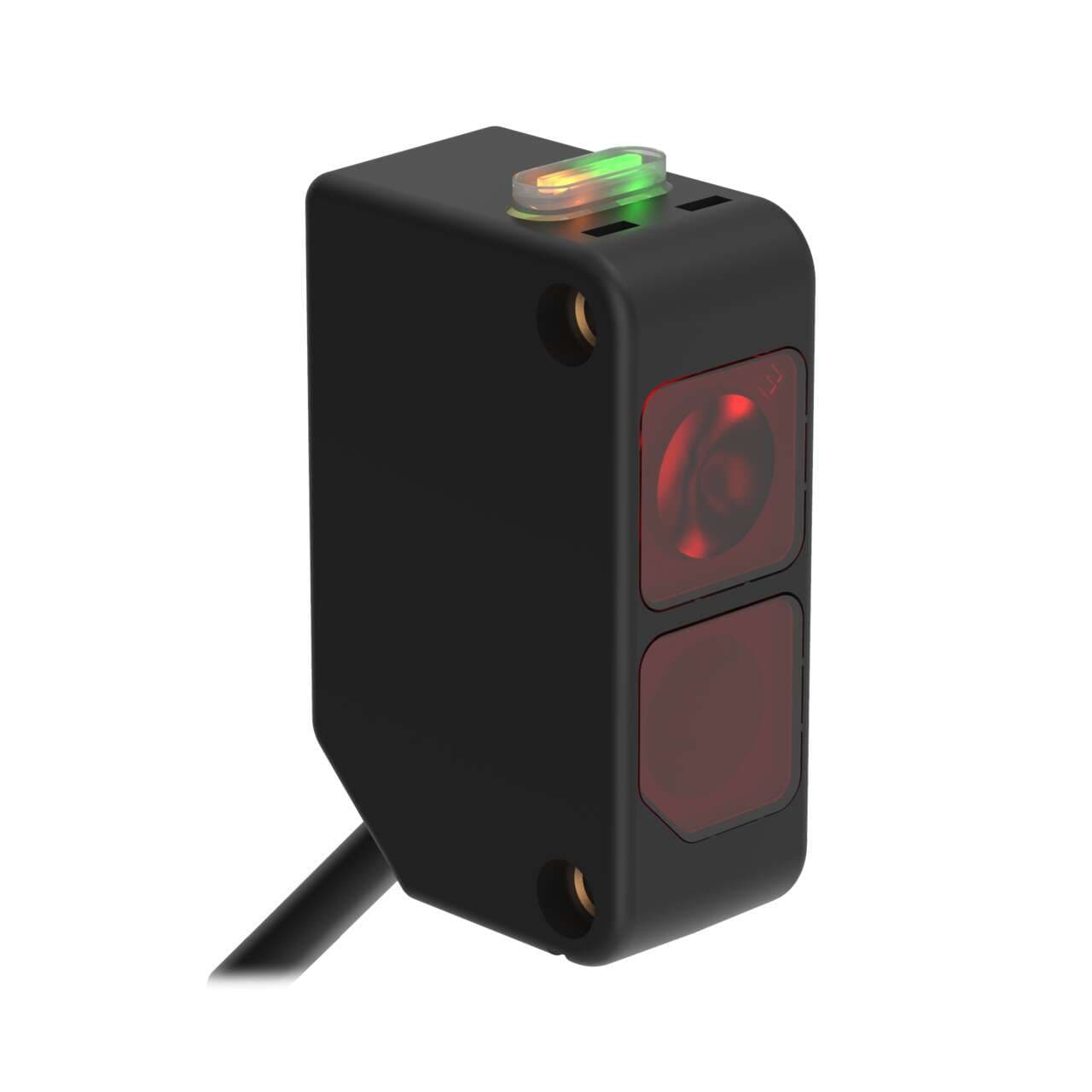

Q20E Banner Proximity Sensors

Name: Q20E
Brand: Banner
Price: 57 USD
Availability: BackOrder

Part#:Q20E

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:77781

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM Q20 Series: Emitter (Red); Range: 12 m; Input 10-30 V dc; Output: No output; 2 m (6.5 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20E Banner price in the box on the right side or send a quick quote.

Product Details

Weight
45.3592 g
Country Of Origin
MX
Adjustments
N/A
IO Link
No
Feature: Hazardous Area
No
EPLAN Cabinet Installable
No
DeviceNet
No
Feature: Audible
No
Feature: Timing (Hold/Delay)
No
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Feature: Encapsulated
No
Opposed Mode Emitter/Receiver
Emitter
IP Rating
IP67
NEMA Rating
NEMA 6
Sensing Beam Wavelength
655
Delay at Power-up (ms)
100
Special Feature: Water Detection
No
Feature: Chemical Resistant
No
Barrel Diameter (mm)
N/A

Indicator

LEDs

Number of Pins

Repeatability (µs)

140

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

N/A

Max Op. Temp. (°C)

Operation

N/A

Min Op. Temp. (°C)

-20

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Connection

Cable

Sensing Mode (Detailed)

Emitter

Outputs

N/A

Housing Style

Rectangular

Sensing Mode (General)

Opposed

Cable Length (m)

Max Sensing Distance (mm)

12000

Primary Housing Material

Thermoplastic

Power

Sensing Beam

Visible Red LED

Primary brand

Banner Engineering

Shape

Rectangular

Wavelength

624 nm

Material

thermoplastic housing

Design

through-beam system / opposed mode

Main function

Sensor (Photo-electric)

Response time

(ON) 1ms / 0.001 s(OFF) 0.6ms / 0.0006 s

Compliant with standard(s)

cURus CE

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Ambient air temperature for operation

-20...+60 °C

Product series / family name

WORLD-BEAM series

Degree of protection

IP67 NEMA 6

Sub-range name

Q20 series

Functions

Photo-electric emitter green LED (power ON) amber LED (black (LO) wire conducting)

Light Color

Visible red

Order code / Manufacturer SKU

77781

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20E Description

Banner Engineering Q20E is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the Q20 series. This sensor operates within an ambient air temperature range of -20 to +60°C and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for connection. It features a rectangular, thermoplastic housing that provides an IP67 NEMA 6 degree of protection, making it suitable for various industrial environments. The Q20E operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It offers a sensing distance of up to 12 meters and utilizes visible red light with a wavelength of 624 nm for detection. The sensor's response times are 1ms (0.001 s) for turning on and 0.6ms (0.0006 s) for turning off, ensuring timely operation for automation tasks.
