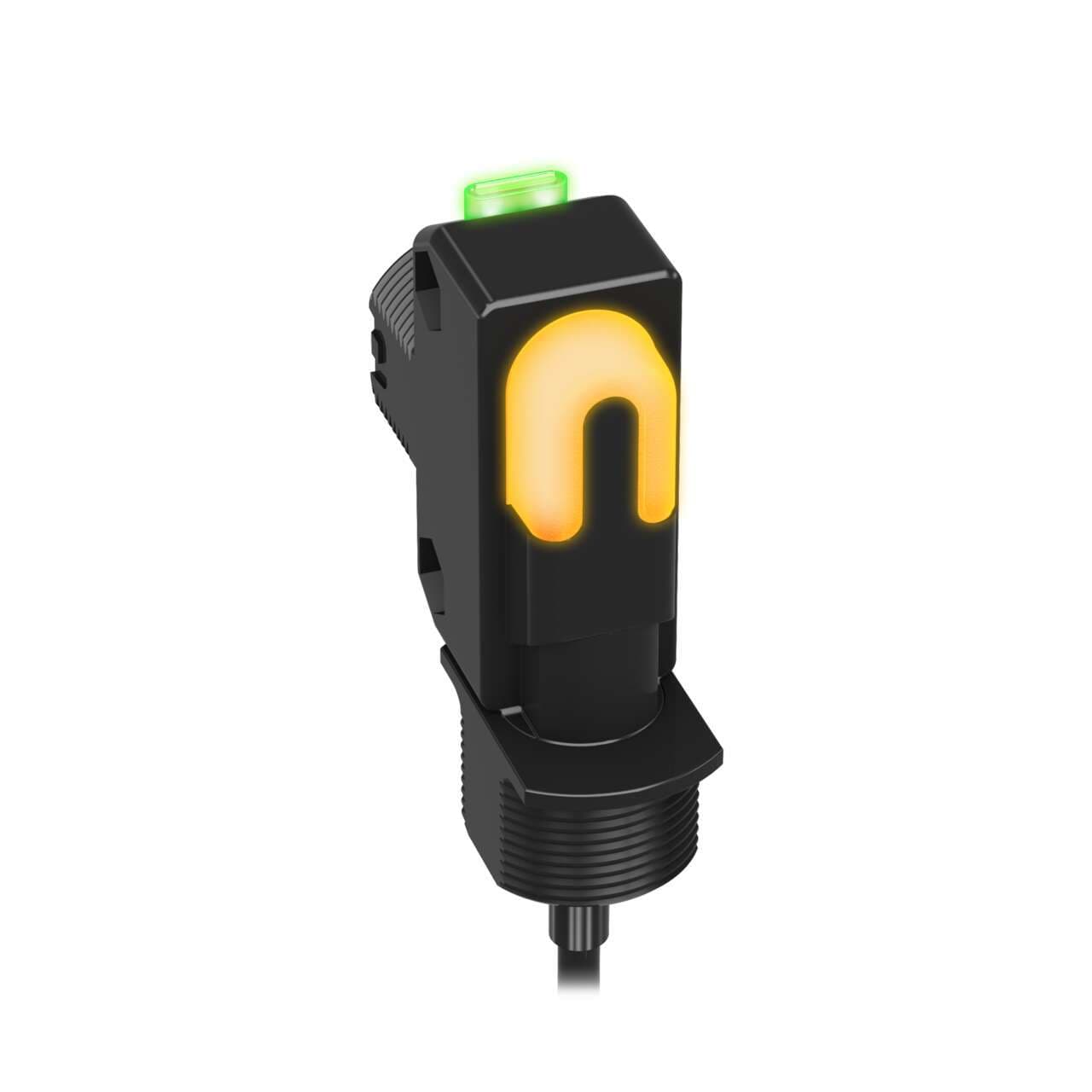

DS18VP6R Banner Proximity Sensors

DS18VP6R on Powermatic Associates
Banner
  • DS18VP6R
  • DS18VP6R

Part#:DS18VP6R

Alt. Part#:76531

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

DS18 VP6R CABLE PNP RECEIVER

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    Receiver
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • NEMA Rating
    NEMA 6
  • Repeatability (µs)
    100
  • Delay at Power-up (ms)
    100
  • Number of Pins
    4
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Sensing Beam Wavelength
    940
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Min Op. Temp. (°C)
    -20
  • Power Supply/Supply Voltage
    10-30 V dc
  • Operation
    Light/Dark Operate
  • Connection
    Cable
  • Output response time (ms)
    0.8 ON/0.4 OFF
  • Quick Disconnect Type
    No QD
  • Max Op. Temp. (°C)
    70
  • Sensing Beam
    Infrared LED
  • Outputs
    PNP
  • Input/Output
    Discrete
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Rectangular w/M18 Mount
  • Max Sensing Distance (mm)
    20000
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Receiver
  • Power
    DC
  • Cable Length (m)
    2
  • Sub-range name
    DS18 series
  • Sensing distance
    20m
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Infrared (IR)
  • Mounting mode
    Threaded mount
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
  • Shape
    Rectangular
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Design
    through-beam system / opposed mode
  • Thread size
    M18
  • Digital outputs
    1 x digital output (PNP transistor)
  • Order code / Manufacturer SKU
    76531
  • Main function
    Sensor (Photo-electric)
  • Wavelength
    940 nm
  • Ambient air temperature for operation
    -20...+70 °C
  • Compliant with standard(s)
    cULus CE
  • Response time
    0.8ms / 0.0008 s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DS18VP6R on Powermatic Associates is $80.00. Order now.


About the product

Banner Engineering DS18VP6R is a photo-electric sensor designed with a thermoplastic housing and an acrylic lens. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is protected to a degree of IP67 NEMA 6, ensuring durability in various environmental conditions. It utilizes infrared light with a wavelength of 940 nm and offers a quick response time of 0.8ms. The DS18VP6R provides one digital output (PNP transistor; complementary NO/NC) and supports both Light-ON and Dark-ON operating modes. Its rectangular shape and through-beam system design allow for a sensing distance of up to 20 meters. This model, part of the DS18 series, comes pre-wired with a 6.5ft / 2m cable featuring bare end flying leads for easy connection. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
