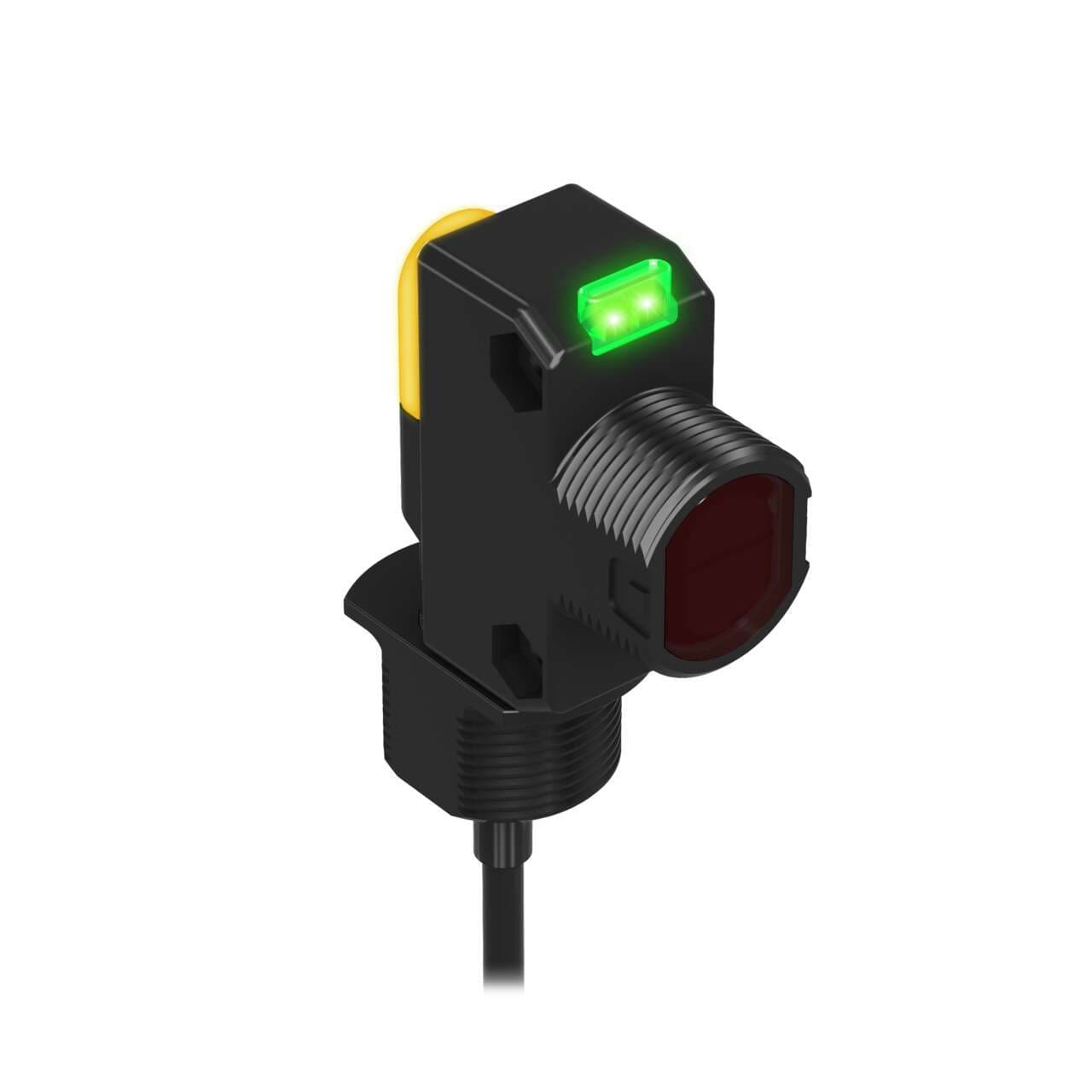

DS18VN6LPWQ5 Banner Proximity Sensors

DS18VN6LPWQ5 on Powermatic Associates
Banner
  • DS18VN6LPWQ5
  • DS18VN6LPWQ5

Part#:DS18VN6LPWQ5

Alt. Part#:78106

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

DS18 VN6LPWQ5 M12 QP NPN POL

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    MX
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    18
  • NEMA Rating
    NEMA 6
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IP Rating
    IP67
  • Number of Pins
    4
  • Repeatability (µs)
    350
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    660
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    2
  • Max Op. Temp. (°C)
    70
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Outputs
    NPN
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • Sensing Mode (General)
    Retroreflective
  • Housing Style
    Rectangular w/M18 Mount
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    3000
  • Sensing Mode (Detailed)
    Polarized
  • Sensing Beam
    Visible Red LED
  • Primary Housing Material
    Thermoplastic
  • Cable Length (m)
    0.15
  • Sub-range name
    DS18 series
  • Light Color
    Visible red
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    3m
  • Design
    retro-reflective mode
  • Primary brand
    Banner Engineering
  • Functions
    Wide-angle polarized photo-electric sensor green LED (power ON) yellow LED (output state)
  • Thread size
    M18
  • Response time
    2ms / 0.002 s
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    660 nm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Compliant with standard(s)
    cULus CE
  • Shape
    Rectangular
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+70 °C
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Material
    thermoplastic housing Acrylic lns.
  • Mounting mode
    Threaded mount
  • Degree of protection
    IP67 NEMA 6
  • Order code / Manufacturer SKU
    78106

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DS18VN6LPWQ5 on Powermatic Associates is $106.00. Order now.


About the product

Banner Engineering DS18VN6LPWQ5 is a photo-electric sensor with a wide-angle polarized design, part of the DS18 series. It features an M18 threaded mount and is housed in thermoplastic with an acrylic lens. This sensor operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6. It emits visible red light with a wavelength of 660 nm and has a sensing distance of up to 3 meters. The DS18VN6LPWQ5 is equipped with a single digital output (NPN transistor; complementary NO/NC), capable of operating in both Light-ON and Dark-ON modes. It has a rapid response time of 2ms / 0.002 s. This sensor is designed in a rectangular, retro-reflective mode and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
