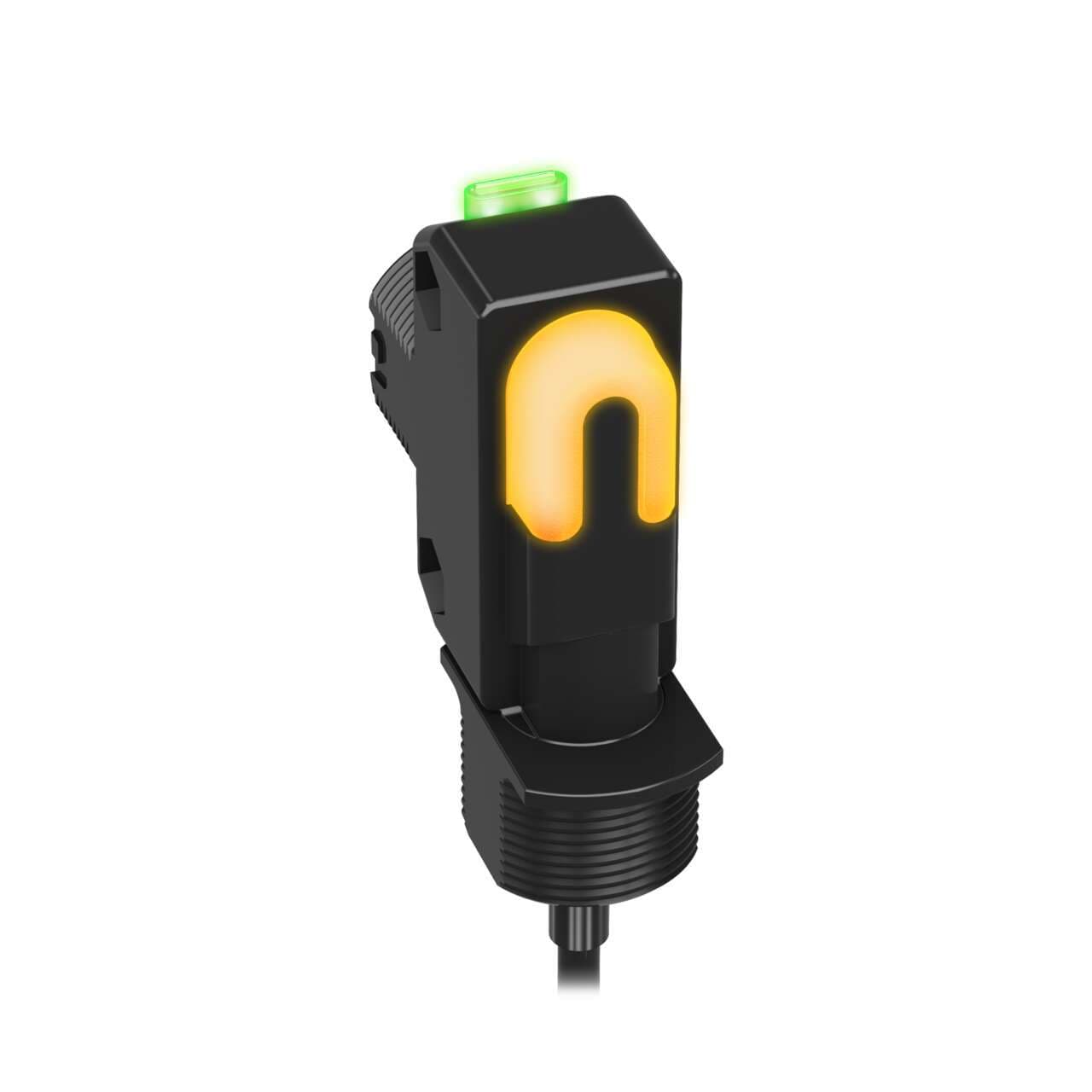

DS18VN6LPQ5 Banner Proximity Sensors
Part#:DS18VN6LPQ5
Alt. Part#:78110
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
DS18 VN6LPQ5 M12 QP NPN POL RETRO
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Feature: Audible No
- IO Link No
- Feature: Chemical Resistant No
- DeviceNet No
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Indicator LEDs
- Opposed Mode Emitter/Receiver N/A
- Adjustments N/A
- Barrel Diameter (mm) 18
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6
- IP Rating IP67
- Number of Pins 4
- Sensing Beam Wavelength 660
- Repeatability (µs) 350
- Delay at Power-up (ms) 100
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Connection Pigtail QD
- Max Op. Temp. (°C) 70
- Output response time (ms) 2
- Operation Light/Dark Operate
- Min Op. Temp. (°C) -20
- Quick Disconnect Type M12 (Euro)
- Outputs NPN
- Power Supply/Supply Voltage 10-30 V dc
- Cable Length (m) 0.15
- Sensing Mode (General) Retroreflective
- Input/Output Discrete
- Max Sensing Distance (mm) 3500
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (Detailed) Polarized
- Primary Housing Material Thermoplastic
- Power DC
- Sensing Beam Visible Red LED
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DS18VN6LPQ5 on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering DS18VN6LPQ5 is a polarized photo-electric sensor designed for retro-reflective mode operation. It features an M18 threaded mount and is housed in thermoplastic with an acrylic lens. This sensor operates within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6. It emits visible red light with a wavelength of 660 nm and has a sensing distance of up to 3.5m. The DS18VN6LPQ5 has a fast response time of 2ms / 0.002 s and includes 1 x digital output (NPN transistor; complementary NO/NC) for Light-ON and Dark-ON operating modes. It is designed as part of the DS18 series and comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The sensor requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
