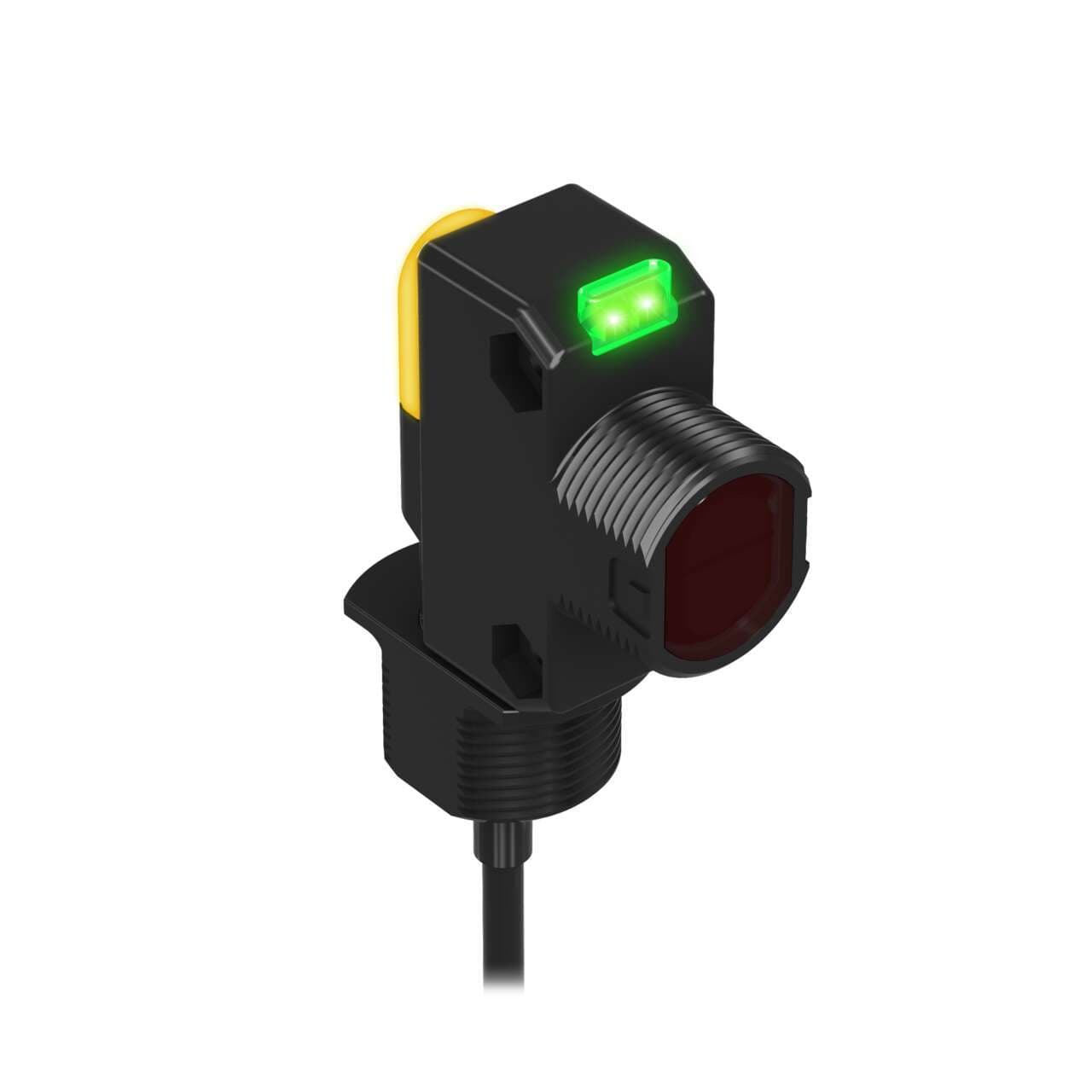

DS18VP6FF100Q5 Banner Proximity Sensors

DS18VP6FF100Q5 on Powermatic Associates
Banner
  • DS18VP6FF100Q5
  • DS18VP6FF100Q5

Part#:DS18VP6FF100Q5

Alt. Part#:78121

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

DS18 VP6FF100Q5 M12 QP PNP 100 mm

Product Details

  • Weight
    18.14368 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • Delay at Power-up (ms)
    100
  • IP Rating
    IP67
  • Number of Pins
    4
  • Special Feature: Remote Teach
    No
  • Repeatability (µs)
    350
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    660
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    PNP
  • Output response time (ms)
    2
  • Min Op. Temp. (°C)
    -20
  • Max Op. Temp. (°C)
    70
  • Connection
    Pigtail QD
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Beam
    Visible Red LED
  • Cable Length (m)
    0.1
  • Max Sensing Distance (mm)
    100
  • Input/Output
    Discrete
  • Power
    DC
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular w/M18 Mount
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    660 nm
  • Thread size
    M18
  • Ambient air temperature for operation
    -20...+70 °C
  • Order code / Manufacturer SKU
    78121
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Visible red
  • Mounting mode
    Threaded mount
  • Sub-range name
    DS18 series
  • Sensing distance
    100mm
  • Operating mode
    Light-ON Dark-ON
  • Digital outputs
    1 x digital output (PNP transistor)
  • Response time
    2ms / 0.002 s
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Material
    thermoplastic housing Acrylic lns.
  • Primary brand
    Banner Engineering
  • Design
    background suppression system
  • Shape
    Rectangular
  • Degree of protection
    IP67 NEMA 6
  • Compliant with standard(s)
    cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DS18VP6FF100Q5 on Powermatic Associates is $118.00. Order now.


About the product

Banner Engineering DS18VP6FF100Q5 is a fixed-field photo-electric sensor designed with a thermoplastic housing and an acrylic lens. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a visible red light source, having a wavelength of 660 nm, and offers a quick response time of 2ms. It provides a single digital output (PNP transistor; complementary NO/NC) and supports both Light-ON and Dark-ON operating modes. The DS18VP6FF100Q5, part of the DS18 series, is designed with a background suppression system and has a sensing distance of 100mm. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy connection. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal.
