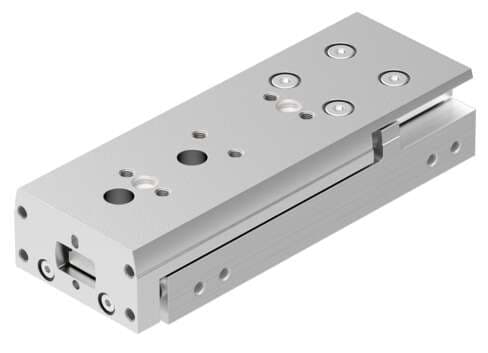

8078835 Festo Pneumatic Actuators

Product Details

• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Symbol
  00991249
• Repetition accuracy
  <= 0.3 mm
• Stroke
  30 mm
• Mounting position
  Any
• Design
  Twin piston Slide
• Mode of operation
  Double-acting
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Max. force Fy
  300 N
• Max. torque Mz
  2 Nm
• Product weight
  176 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Piston rod material
  High-alloy stainless steel
• Drive unit operating mode
  Yoke
• Position sensing
  For proximity sensor
• Max. speed
  0.5 m/s
• Impact energy in the end positions
  0.03 J
• Max. torque My
  2 Nm
• Theoretical force at 6 bar, advancing
  60 N
• Cover material
  Wrought aluminum alloy
Guide material
POM High-alloy steel
Piston diameter
8 mm
Guide
Recirculating ball bearing guide
Operating pressure
0.15 MPa ... 0.8 MPa
Type code
DGST
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Cushioning length
1.5 mm
Max. torque Mx
2.8 Nm
Moving mass
92 g
Type of mounting
With through-hole
Seals material
HNBR
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Max. force Fz
300 N
Theoretical force at 6 bar, retracting
45 N
Pneumatic connection
M5
Housing material
Wrought aluminum alloy
