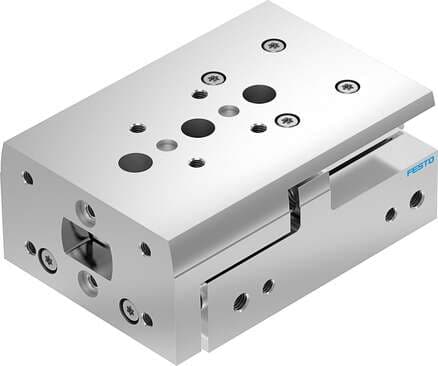

8078848 Festo Pneumatic Actuators

Product Details

• Piston diameter
  12 mm
• Guide
  Recirculating ball bearing guide
• Max. speed
  0.5 m/s
• Cushioning length
  1.1 mm
• Max. torque Mz
  4.2 Nm
• Theoretical force at 6 bar, retracting
  102 N
• Moving mass
  242 g
• Type of mounting
  With through-hole
• Housing material
  Wrought aluminum alloy
• Type code
  DGST
• Drive unit operating mode
  Yoke
• Repetition accuracy
  <= 0.3 mm
• Ambient temperature
  -10 °C ... 60 °C
• Max. force Fy
  540 N
• Pneumatic connection
  M5
• Cover material
  Wrought aluminum alloy
• Guide material
  POM High-alloy steel
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Operating pressure
  0.1 MPa ... 0.8 MPa
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
Max. torque My
4.2 Nm
Theoretical force at 6 bar, advancing
136 N
Piston rod material
High-alloy stainless steel
Stroke
30 mm
Mounting position
Any
Symbol
00991249
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Impact energy in the end positions
0.07 J
Max. force Fz
540 N
Product weight
501 g
Seals material
HNBR
Design
Twin piston Slide
Position sensing
For proximity sensor
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. torque Mx
4.2 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
