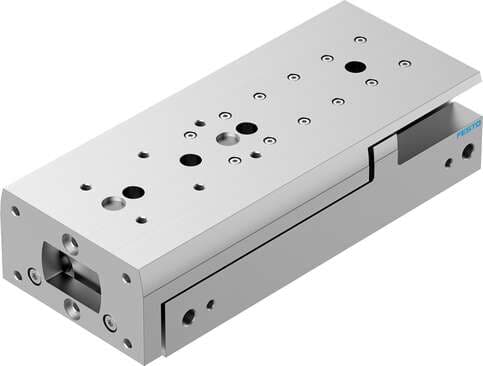

8078879 Festo Pneumatic Actuators

Product Details

• Piston diameter
  25 mm
• Design
  Twin piston Slide
• Stroke
  125 mm
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Repetition accuracy
  <= 0.3 mm
• Ambient temperature
  -10 °C ... 60 °C
• Max. force Fz
  1380 N
• Theoretical force at 6 bar, advancing
  589 N
• Piston rod material
  High-alloy stainless steel
• Guide material
  POM High-alloy steel
• Drive unit operating mode
  Yoke
• Symbol
  00991249
• Max. torque My
  17 Nm
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Housing material
  Wrought aluminum alloy
• Type code
  DGST
• Guide
  Ball bearing cage guide
• Max. speed
  0.5 m/s
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Cushioning length
  1.2 mm
Max. torque Mx
20 Nm
Moving mass
1703 g
Cover material
Wrought aluminum alloy
Position sensing
For proximity sensor
Mode of operation
Double-acting
Corrosion resistance class (CRC)
1 - Low corrosion stress
Theoretical force at 6 bar, retracting
495 N
Type of mounting
With through-hole
Pneumatic connection
G1/8
Mounting position
Any
Operating pressure
0.1 MPa ... 0.8 MPa
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Impact energy in the end positions
0.3 J
Max. force Fy
1380 N
Max. torque Mz
17 Nm
Product weight
3507 g
Seals material
HNBR
