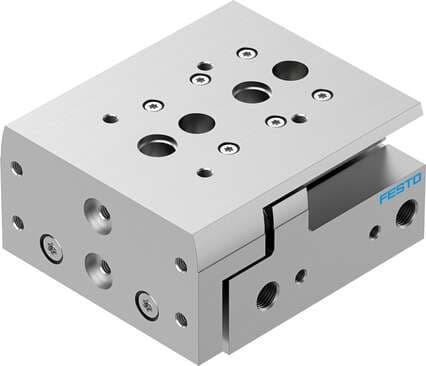

8078863 Festo Pneumatic Actuators

Product Details

• Type code
  DGST
• Position sensing
  For proximity sensor
• Repetition accuracy
  <= 0.3 mm
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Cushioning length
  1 mm
• Max. torque Mx
  13 Nm
• Theoretical force at 6 bar, retracting
  317 N
• Moving mass
  448 g
• Drive unit operating mode
  Yoke
• Design
  Twin piston Slide
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Impact energy in the end positions
  0.2 J
• Max. torque Mz
  14 Nm
• Type of mounting
  With through-hole
• Cover material
  Wrought aluminum alloy
• Housing material
  Wrought aluminum alloy
• Piston diameter
  20 mm
• Mounting position
  Any
• Operating pressure
  0.1 MPa ... 0.8 MPa
• Mode of operation
  Double-acting
Corrosion resistance class (CRC)
1 - Low corrosion stress
Max. force Fy
1270 N
Max. torque My
14 Nm
Theoretical force at 6 bar, advancing
377 N
Pneumatic connection
G1/8
Piston rod material
High-alloy stainless steel
Stroke
20 mm
Guide
Ball bearing cage guide
Max. speed
0.5 m/s
Ambient temperature
-10 °C ... 60 °C
Max. force Fz
1270 N
Product weight
986 g
Note on materials
Free of copper and PTFE RoHS-compliant
Seals material
HNBR
Guide material
POM High-alloy steel
Cushioning
Elastomer cushioning, at both ends, stroke not adjustable
Symbol
00991249
