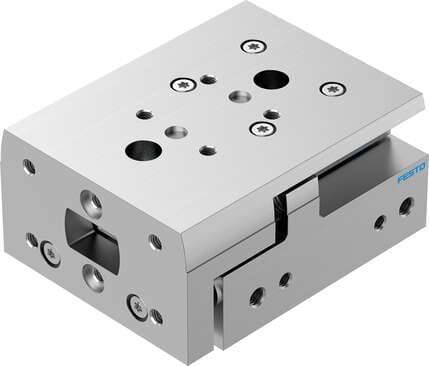

8078847 Festo Pneumatic Actuators

Product Details

• Stroke
  20 mm
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Design
  Twin piston Slide
• Operating pressure
  0.1 MPa ... 0.8 MPa
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Theoretical force at 6 bar, retracting
  102 N
• Max. torque Mx
  4.2 Nm
• Max. torque Mz
  4.2 Nm
• Type of mounting
  With through-hole
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Guide
  Recirculating ball bearing guide
• Symbol
  00991249
• Repetition accuracy
  <= 0.3 mm
• Ambient temperature
  -10 °C ... 60 °C
• Impact energy in the end positions
  0.07 J
• Max. force Fy
  520 N
• Theoretical force at 6 bar, advancing
  136 N
• Moving mass
  238 g
• Pneumatic connection
  M5
Seals material
HNBR
Piston rod material
High-alloy stainless steel
Guide material
POM High-alloy steel
Piston diameter
12 mm
Drive unit operating mode
Yoke
Position sensing
For proximity sensor
Type code
DGST
Mounting position
Any
Max. speed
0.5 m/s
Mode of operation
Double-acting
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Cushioning length
1.1 mm
Max. force Fz
520 N
Max. torque My
4.2 Nm
Product weight
456 g
Cover material
Wrought aluminum alloy
Housing material
Wrought aluminum alloy
