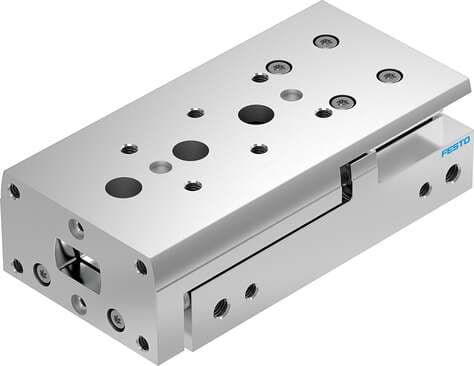

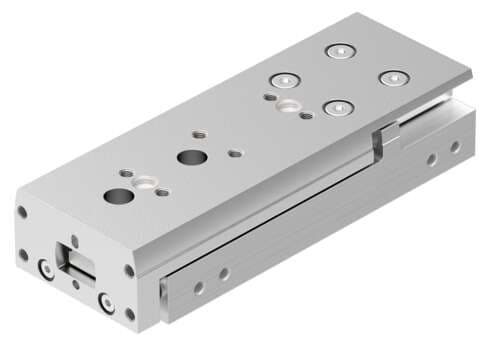

8078837 Festo Pneumatic Actuators

Product Details

• Repetition accuracy
  <= 0.3 mm
• Drive unit operating mode
  Yoke
• Position sensing
  For proximity sensor
• Guide material
  POM High-alloy steel
• Piston diameter
  8 mm
• Guide
  Recirculating ball bearing guide
• Max. speed
  0.5 m/s
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Theoretical force at 6 bar, advancing
  60 N
• Cover material
  Wrought aluminum alloy
• Mounting position
  Any
• Symbol
  00991249
• Ambient temperature
  -10 °C ... 60 °C
• Max. torque Mx
  3.2 Nm
• Theoretical force at 6 bar, retracting
  45 N
• Pneumatic connection
  M5
• Piston rod material
  High-alloy stainless steel
• Stroke
  50 mm
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Operating pressure
  0.15 MPa ... 0.8 MPa
Corrosion resistance class (CRC)
1 - Low corrosion stress
Max. force Fy
350 N
Cushioning length
1.5 mm
Product weight
236 g
Type of mounting
With through-hole
Seals material
HNBR
Type code
DGST
Design
Twin piston Slide
Mode of operation
Double-acting
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Impact energy in the end positions
0.03 J
Max. torque Mz
3 Nm
Moving mass
122 g
Housing material
Wrought aluminum alloy
Max. force Fz
350 N
Max. torque My
3 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
