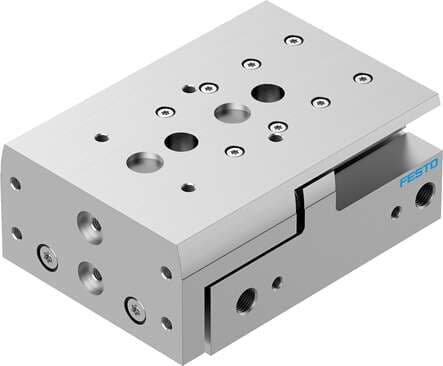

8078866 Festo Pneumatic Actuators

Product Details

• Drive unit operating mode
  Yoke
• Position sensing
  For proximity sensor
• Repetition accuracy
  <= 0.3 mm
• Ambient temperature
  -10 °C ... 60 °C
• Max. torque Mx
  9 Nm
• Theoretical force at 6 bar, retracting
  317 N
• Type of mounting
  With through-hole
• Seals material
  HNBR
• Piston rod material
  High-alloy stainless steel
• Guide material
  POM High-alloy steel
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Max. speed
  0.5 m/s
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Impact energy in the end positions
  0.2 J
• Max. torque Mz
  10 Nm
• Product weight
  1196 g
• Cover material
  Wrought aluminum alloy
• Piston diameter
  20 mm
• Guide
  Ball bearing cage guide
• Design
  Twin piston Slide
Corrosion resistance class (CRC)
1 - Low corrosion stress
Max. force Fy
1080 N
Moving mass
549 g
Note on materials
Free of copper and PTFE RoHS-compliant
Housing material
Wrought aluminum alloy
Type code
DGST
Operating pressure
0.1 MPa ... 0.8 MPa
Mode of operation
Double-acting
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Max. torque My
10 Nm
Theoretical force at 6 bar, advancing
377 N
Pneumatic connection
G1/8
Stroke
50 mm
Mounting position
Any
Symbol
00991249
Cushioning length
1 mm
Max. force Fz
1080 N
