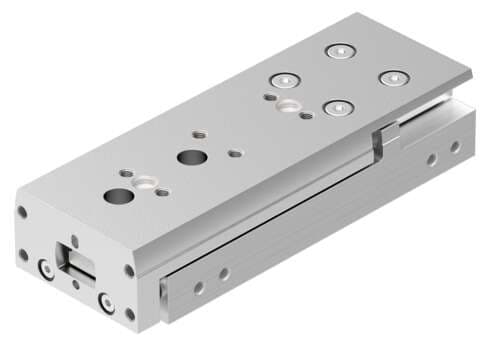

8078833 Festo Pneumatic Actuators

Product Details

• Guide material
  POM High-alloy steel
• Type code
  DGST
• Position sensing
  For proximity sensor
• Piston diameter
  8 mm
• Mounting position
  Any
• Design
  Twin piston Slide
• Max. force Fy
  250 N
• Max. force Fz
  250 N
• Moving mass
  69 g
• Pneumatic connection
  M5
• Seals material
  HNBR
• Guide
  Recirculating ball bearing guide
• Max. speed
  0.5 m/s
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -10 °C ... 60 °C
• Max. torque My
  2 Nm
• Piston rod material
  High-alloy stainless steel
• Stroke
  10 mm
• Cushioning
  Elastomer cushioning, at both ends, stroke not adjustable
• Operating pressure
  0.15 MPa ... 0.8 MPa
Corrosion resistance class (CRC)
1 - Low corrosion stress
Cushioning length
1.5 mm
Theoretical force at 6 bar, retracting
45 N
Type of mounting
With through-hole
Cover material
Wrought aluminum alloy
Drive unit operating mode
Yoke
Symbol
00991249
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Max. torque Mx
2 Nm
Theoretical force at 6 bar, advancing
60 N
Mode of operation
Double-acting
Repetition accuracy
<= 0.3 mm
Impact energy in the end positions
0.03 J
Max. torque Mz
2 Nm
Product weight
129 g
Note on materials
Free of copper and PTFE RoHS-compliant
Housing material
Wrought aluminum alloy
