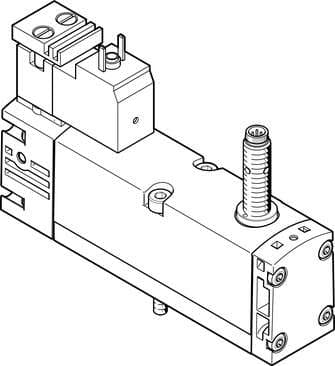

560745 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pilot pressure MPa
  0.3 MPa ... 1 MPa
• Standard nominal flow rate
  1100 l/min
• Degree of protection
  IP65 NEMA 4
• Nominal width
  9 mm
• Mounting position
  Any
• Symbol
  00992813
• Sensor switching status indication
  LED
• Switching time off
  41 ms
• Max. negative test pulse on 1 signal
  800 µs
• Certificate issuing authority
  UL MH19482
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Sensor short circuit protection
  Pulsed
• KC characters
  KC EMC
• Actuation type
  Electrical
• Design
  Piston gate valve
• Exhaust air function
  With flow control option Via individual sub-base
• Manual override
  Covered
• Signal status display
  With accessories
• Flow rate of pneumatic valve on individual sub-base
  1100 l/min
Pneumatic valve - sensor switching time off
11 ms
CE marking (see declaration of conformity)
As per EU EMC directive
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Max. tightening torque for valve mounting
1.8 Nm ... 2.2 Nm
Electrical connection
Form C Without PE conductor
Pneumatic connection 2
Sub-base, size 26 mm as per ISO 15407-1
Note on materials
RoHS-compliant
Material of screws
Steel, galvanized
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1 G1/4
Certification
C-Tick c UL us - Recognized (OL)
Type of control
Pilot-controlled
Sensor reverse polarity protection
For all electrical connections
Pilot pressure
3 bar ... 10 bar
Pneumatic valve - sensor ON switching time
60 ms
Switching output
NPN
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Max. output current, sensor
200 mA
Sensor voltage drop
≤ 2 V
Type of mounting
On sub-base
Pneumatic connection 5
Sub-base, size 26 mm as per ISO 15407-1
Switching element function
N/C contact
Width
26 mm
Reset method
Mechanical spring
Type code
VSVA
Conforms to standard
ISO 15407-1 VDMA 24563
Flow direction
Any
Measuring principle
Inductive
Flow rate of pneumatic valve
1400 l/min
On switching time
21 ms
Duty cycle
100%
Nominal operating voltage DC
24 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
DC sensor operating voltage range
10 V ... 30 V
Sensor idle current
≤ 10 mA
Pilot exhaust air port 82/84
Optionally: Not ducted
Pneumatic connection 1
Sub-base, size 26 mm as per ISO 15407-1
Pilot interface
as per ISO 15218
Valve function
5/2, monostable
Operating pressure
-9 bar ... 16 bar
Operating voltage
24V DC
Sealing principle
Soft
Pilot air supply port
External
Switching position sensing
Normal position with sensor
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1100 l/min
Max. positive test pulse with 0 signal
1000 µs
Coil characteristics
24 V DC: 1.8 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Product weight
289 g
Sensor max. switching frequency
5000 Hz
Sensor residual ripple
± 10 %
Pilot air port 12/14
Sub-base, size 26 mm as per ISO 15407-1
Pneumatic connection 3
Sub-base, size 26 mm as per ISO 15407-1
Housing material
Die-cast aluminum PA
Sensor connection
Plug M8x1
Pneumatic connection 4
Sub-base, size 26 mm as per ISO 15407-1
Seals material
FPM NBR
