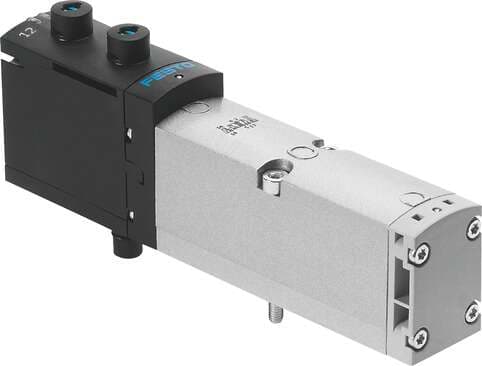

560727 Festo Directional Control Valves

Product Details

• Operating pressure
  -0.9 bar ... 10 bar
• Standard nominal flow rate
  1000 l/min
• Design
  Piston gate valve
• Degree of protection
  IP65 NEMA 4
• Type of control
  Pilot-controlled
• Signal status display
  LED
• Flow rate of pneumatic valve on individual sub-base
  1200 l/min
• Asymmetrical switching time off
  49 ms for control side 12
• Surge resistance
  2.5 kV
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
• Pilot air port 12/14
  Sub-base, size 26 mm as per ISO 15407-2
• Pneumatic connection 1
  Sub-base, size 26 mm as per ISO 15407-2
• Pneumatic connection 4
  Sub-base, size 26 mm as per ISO 15407-2
• Housing material
  Die-cast aluminum PA
• Pilot pressure MPa
  0.3 MPa ... 1 MPa
• Reset method
  Mechanical spring Electrical actuation
• Exhaust air function
  With flow control option Via individual sub-base
• Manual override
  Detenting Covered
Flow direction
Non-reversible
Optimized flow rate of pneumatic valve, pneumatically concatenated flow
1350 l/min
Max. negative test pulse on 1 signal
1100 µs
Coil characteristics
24 V DC: 1.6 W
Corrosion resistance class (CRC)
0 - No corrosion stress
Product weight
291 g
Seals material
FPM NBR
Width
26 mm
Nominal width
9 mm
Sealing principle
Soft
Pilot air supply port
External Internal
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1000 l/min
Nominal operating voltage DC
24 V
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Electrical connection
4-pin as per ISO 15407-2
Pneumatic connection 2
Sub-base, size 26 mm as per ISO 15407-2
Note on materials
RoHS-compliant
Lap
Overlap
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-2 G1/4
Certification
CSA (OL) c UL us - Recognized (OL)
Symbol
00992824
Flow rate of pneumatic valve
1400 l/min
Asymmetrical switching time on
22 ms for control side 12 9 ms for control side 14
Mounting position
Any
Max. positive test pulse with 0 signal
1200 µs
Contamination level
3
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Relative air humidity
0 - 90 %
Max. tightening torque for valve mounting
1.8 Nm ... 2.2 Nm
Pilot exhaust air port 82/84
Optionally: Not ducted
Pneumatic connection 5
Sub-base, size 26 mm as per ISO 15407-2
Valve function
5/3, exhausted
Actuation type
Electrical
Operating voltage
24V DC
Type code
VSVA
Pilot pressure
3 bar ... 10 bar
Duty cycle
100%
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-5 °C ... 50 °C
Noise level
85 dB(A)
Type of mounting
On sub-base
Pneumatic connection 3
Sub-base, size 26 mm as per ISO 15407-2
Material of screws
Steel, galvanized
