560775 Festo Pneumatic Valves Accessories

560775 on Powermatic Associates
Festo

Part#:560775

Alt. Part#:VABF-S4-2-R6C2-C-10E

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

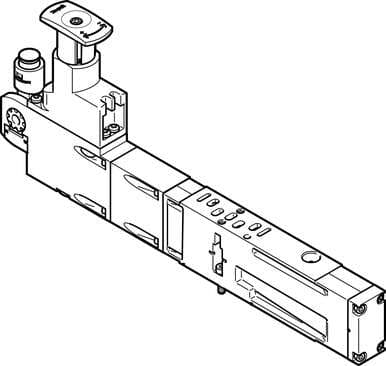

regulator plate VABF-S4-2-R6C2-C-10E Width: 18 mm, Based on the standard: ISO 15407-2, Assembly position: Any, Controller function: (* Output pressure constant, * with secondary exhaust), Pressure gauge selection: possible

Product Details

  • Controller function
    Outlet pressure constant With secondary exhausting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Controller housing material
    Die-cast aluminum
  • Type code
    VABF
  • Optional pressure gauge
    Possible
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Degree of protection
    IP65 NEMA 4
  • Material of operator panel
    PA
  • Mounting position
    Any
  • Symbol
    00991946
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pressure gauge connection
    With retaining clamp
  • Width
    18 mm
  • Operating pressure
    1 MPa
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Product weight
    410 g
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Based on norm
    ISO 15407-2
  • Pressure regulation range
    0.5 bar ... 10 bar
  • Inlet pressure 1
    0.5 bar ... 10 bar
  • Ambient temperature
    -5 °C ... 50 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
