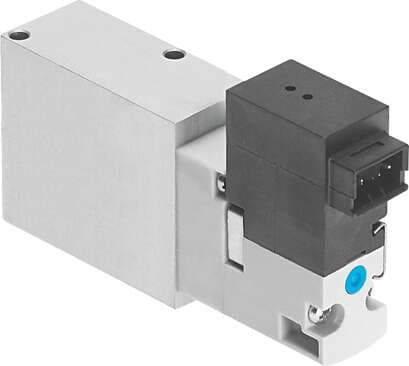

560709 Festo Pneumatic Components

Product Details

• Actuation type
  Electrical
• Pneumatic working port
  Sub-base
• Operating voltage
  24V DC
• Flow direction
  Non-reversible
• On switching time
  12 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -5 °C ... 50 °C
• Seals material
  FPM NBR
• Lap
  Overlap
• Reset method
  Pneumatic spring
• Type code
  VOVG
• Electrical connection
  2-pin Plug
• Valve function
  3/2, closed, monostable
• Standard nominal flow rate
  180 l/min
• Exhaust air function
  With flow control option
• Manual override
  Non-detenting
• Symbol
  00991183
• Switching time off
  10 ms
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic connection 3
  Sub-base
Pneumatic connection 1
Sub-base
Operating pressure
2 bar ... 8 bar
Design
Piston gate valve
Nominal width
2.1 mm
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 2
Sub-base
Housing material
Wrought aluminum alloy
Width
12 mm
Degree of protection
IP40
Sealing principle
Soft
Type of control
Pilot-controlled
Coil characteristics
24 V DC: 1.0 W
Corrosion resistance class (CRC)
0 - No corrosion stress
Note on materials
RoHS-compliant
