560714 Festo Pneumatic Components

560714 on Powermatic Associates
Festo

Part#:560714

Alt. Part#:VOVG-B12-M52Q-AH-F-1H3

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

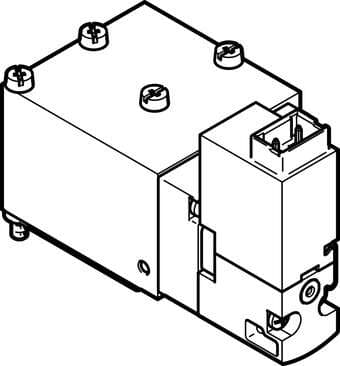

solenoid valve VOVG-B12-M52Q-AH-F-1H3 Valve function: 5/2 monostable, Type of actuation: electrical, Width: 25 mm, Standard nominal flow rate: 180 l/min, Operating pressure: 2 - 8 bar

Product Details

  • Standard nominal flow rate
    180 l/min
  • Operating voltage
    24V DC
  • Manual override
    Non-detenting
  • Temperature of medium
    -5 °C ... 50 °C
  • Housing material
    Wrought aluminum alloy
  • Lap
    Overlap
  • Pneumatic working port
    Sub-base
  • Mounting position
    Any
  • Flow direction
    Non-reversible
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -5 °C ... 50 °C
  • Seals material
    FPM NBR
  • Design
    Piston gate valve
  • Nominal width
    2.1 mm
  • Exhaust air function
    With flow control option
  • Switching time off
    18 ms
  • Coil characteristics
    24 V DC: 1.0 W
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Pneumatic connection 2
    Sub-base
  • Actuation type
    Electrical
  • Operating pressure
    2 bar ... 8 bar
  • Width
    25 mm
  • Degree of protection
    IP40
  • Sealing principle
    Soft
  • Symbol
    00991049
  • On switching time
    15 ms
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 1
    Sub-base
  • Note on materials
    RoHS-compliant
  • Valve function
    5/2, monostable
  • Reset method
    Pneumatic spring
  • Type code
    VOVG
  • Type of control
    Pilot-controlled
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Electrical connection
    2-pin Plug
  • Pneumatic connection 3
    Sub-base

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

560714 Related Documents

560714 DataSheet.pdf
