560947 Festo Pneumatic Valves Accessories

560947 on Powermatic Associates
Festo

Part#:560947

Alt. Part#:VMPAL-EPR-SP

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Only 5 left in stock. Order Now!

Apr 23, 2025

Product description

end plate VMPAL-EPR-SP Width: 28,8 mm, Length: 107,3 mm, Integrated function: Pilot air selector for choosing the pilot air supply (internal or external), Flow direction: reversible, Valve terminal structure: Valve sizes can be mixed

Product Details

  • Note on degree of protection
    In mounted state
  • Width
    28.8 mm
  • Type code
    VMPAL
  • Pilot pressure
    3 bar ... 8 bar
  • Pilot exhaust air port 82/84
    M7
  • End plate material
    Die-cast aluminum PA-reinforced
  • Pilot pressure MPa
    0.3 MPa ... 0.8 MPa
  • Length
    107.3 mm
  • Valve manifold design
    Valve sizes can be mixed
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Pneumatic connection 3
    G1/4
  • Integrated function
    Coding cover for determining the control air supply (internal or external)
  • Flow direction
    Reversible
  • Degree of protection
    IP65 IP67
  • Pneumatic connection 1
    G1/4
  • Pilot air port 12/14
    M7
  • Note on materials
    RoHS-compliant
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Product weight
    180 g
  • Ambient temperature
    -5 °C ... 50 °C
  • Pneumatic connection 5
    G1/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

560947 Related Documents

560947 DataSheet.pdf

Similar products from: Festo Pneumatic Valves Accessories

540171 on Powermatic Associates

540171

Festo

vertical pressure supply plate VABF-S4-1-P1A3-G14 For valve terminals VTSA and VTSA-F, standard port pattern to 15407-2, for mounting between manifold sub-base and valve. Width: 26 mm, Based on the standard: ISO 15407-2, Assembly position: Any, Operating

1 in stock
573440 on Powermatic Associates

573440

Festo

manifold rail VABM-L1-10HW-G18-10-GR Grid dimension: 10,5 mm, Assembly position: Any, Max. number of valve positions: 10, Authorisation: (* c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Moderate corrosion stress

5 in stock
573443 on Powermatic Associates

573443

Festo

manifold rail VABM-L1-10HW-G18-20-GR Grid dimension: 10,5 mm, Assembly position: Any, Max. number of valve positions: 20, Authorisation: (* c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Moderate corrosion stress

2 in stock
573442 on Powermatic Associates

573442

Festo

manifold rail VABM-L1-10HW-G18-16-GR Grid dimension: 10,5 mm, Assembly position: Any, Max. number of valve positions: 16, Authorisation: (* c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Moderate corrosion stress

1 in stock
573435 on Powermatic Associates

573435

Festo

manifold rail VABM-L1-10HW-G18-5-GR Grid dimension: 10,5 mm, Assembly position: Any, Max. number of valve positions: 5, Authorisation: (* c CSA us (OL), * c UL us - Recognized (OL)), Corrosion resistance classification CRC: 2 - Moderate corrosion stress

1 in stock
573942 on Powermatic Associates

573942

Festo

electrical connection box VAVE-L1-1VK7-LP Cable attribute: For static applications, Polarity protected: Bipolar, Additional functions: Spark arresting, Signal status display: LED, Nominal operating voltage DC: (* 12 V, * 24 V)

40 in stock

Manufacturer warranty

560947 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

5

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 560947 with other Pneumatic Valves Accessories products

Note on degree of protect...

Width

Type code

Pilot pressure

Pilot exhaust air port 82...

End plate material

Pilot pressure MPa

Length

Valve manifold design

Corrosion resistance clas...

Selected product

560947
5 in stock
560947
Festo

end plate VMPAL-EPR-SP Width: 28,8 mm, Length: 107,3 mm, Integrated function: Pilot air selector for...

Note on degree of protectionIn mounted state

Width28.8 mm

Type codeVMPAL

Pilot pressure3 bar ... 8 bar

Pilot exhaust air port 82/84M7

End plate materialDie-cast aluminum PA-reinfor...

Pilot pressure MPa0.3 MPa ... 0.8 MPa

Length107.3 mm

Valve manifold designValve sizes can be mixed

Corrosion resistance class (CRC)3 - High corrosion stress

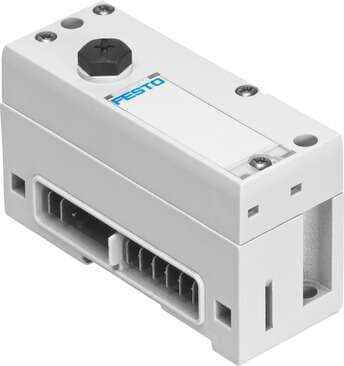

570783
