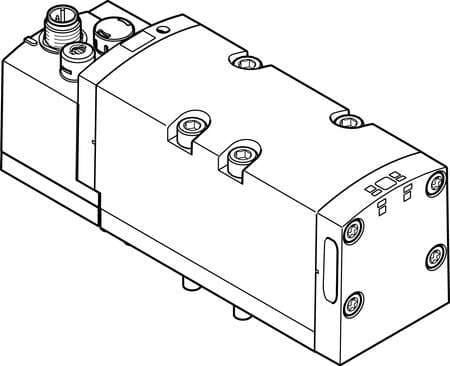

566994 Festo Directional Control Valves

Product Details

• Operating pressure
  3 bar ... 10 bar
• Degree of protection
  IP65 NEMA 4
• Type code
  VSVA
• Conforms to standard
  ISO 5599-1
• Switching time off
  60 ms
• Permissible voltage fluctuations
  +/- 10 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 5
  Sub-base, size 2 as per ISO 5599-1
• Housing material
  Die-cast aluminum PA
• Width
  52 mm
• Operating voltage
  24V DC
• Certification
  C-Tick c UL us - Recognized (OL)
• Sealing principle
  Soft
• Manual override
  Detenting Non-detenting
• Type of control
  Pilot-controlled
• Signal status display
  LED
• Duty cycle
  100%
• Nominal current with current reduction
  35 mA after 30 ms
• Temperature of medium
  -5 °C ... 50 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-1
Note on materials
RoHS-compliant
KC characters
KC EMC
Standard nominal flow rate
2800 l/min
Reset method
Mechanical spring
Mounting position
Any
Pilot air supply port
Internal
Flow rate of pneumatic valve on individual sub-base
2400 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
2800 l/min
Nominal pick-up current per solenoid coil
165 mA to 30 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity)
As per EU EMC directive
Type of mounting
On sub-base
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-1
Lap
Overlap
Pneumatic working port
Sub-base, size 2 as per ISO 5599-1 G3/8
Width dimension
59 mm
Flow direction
Non-reversible
On switching time
20 ms
Max. negative test pulse on 1 signal
3500 µs
Corrosion resistance class (CRC)
0 - No corrosion stress
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Product weight
702 g
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-1
Material of screws
Steel Galvanized
Valve function
5/2, monostable
Actuation type
Electrical
Design
Piston gate valve
Nominal width
15 mm
Exhaust air function
With flow control option Via individual sub-base
Symbol
00991003
Flow rate of pneumatic valve
4000 l/min
Max. positive test pulse with 0 signal
1000 µs
Coil characteristics
24 V DC: 4.6 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Relative air humidity
0 - 90 %
Electrical connection
3-pin Round design
Pneumatic connection 2
Sub-base, size 2 as per ISO 5599-1
Seals material
FPM NBR
