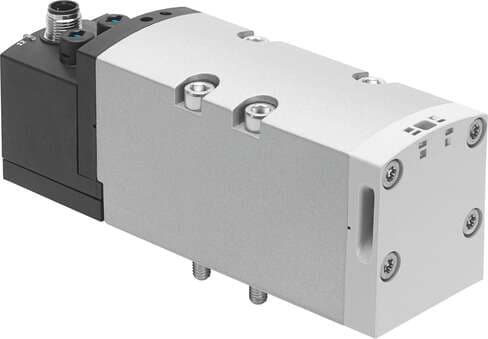

566997 Festo Directional Control Valves

Product Details

• Valve function
  5/3, closed
• Actuation type
  Electrical
• Flow rate of pneumatic valve
  3600 l/min
• Max. positive test pulse with 0 signal
  1000 µs
• Lap
  Overlap
• Operating voltage
  24V DC
• Certification
  C-Tick c UL us - Recognized (OL)
• Exhaust air function
  With flow control option Via individual sub-base
• Width
  52 mm
• Nominal width
  15 mm
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• Flow direction
  Non-reversible
• Max. negative test pulse on 1 signal
  3500 µs
• Nominal current with current reduction
  35 mA after 30 ms
• KC characters
  KC EMC
• Standard nominal flow rate
  2700 l/min
• Degree of protection
  IP65 NEMA 4
• Type code
  VSVA
• Conforms to standard
  ISO 5599-1
Type of control
Pilot-controlled
Switching time off
60 ms
Coil characteristics
24 V DC: 4.6 W
CE marking (see declaration of conformity)
As per EU EMC directive
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-1
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-1
Seals material
FPM NBR
Operating pressure
3 bar ... 10 bar
Pneumatic working port
Sub-base, size 2 as per ISO 5599-1 G3/8
Design
Piston gate valve
Width dimension
59 mm
Mounting position
Any
Signal status display
LED
Optimized flow rate of pneumatic valve pneumatically concatenated flow
2700 l/min
On switching time
23 ms
Nominal pick-up current per solenoid coil
165 mA to 30 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Manual override
Detenting Non-detenting
Symbol
00991080
Flow rate of pneumatic valve on individual sub-base
2300 l/min
Duty cycle
100%
Permissible voltage fluctuations
+/- 10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
0 - No corrosion stress
Electrical connection
3-pin Round design
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-1
Pneumatic connection 2
Sub-base, size 2 as per ISO 5599-1
Note on materials
RoHS-compliant
Material of screws
Steel Galvanized
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Relative air humidity
0 - 90 %
Product weight
780 g
Type of mounting
On sub-base
Pneumatic connection 5
Sub-base, size 2 as per ISO 5599-1
Housing material
Die-cast aluminum PA
