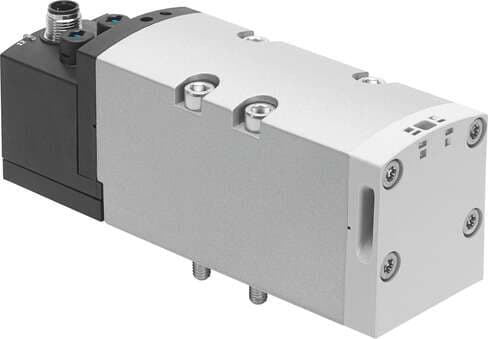

566992 Festo Directional Control Valves

Product Details

• KC characters
  KC EMC
• Standard nominal flow rate
  2200 l/min
• Degree of protection
  IP65 NEMA 4
• Exhaust air function
  With flow control option Via individual sub-base
• Type of control
  Pilot-controlled
• Signal status display
  LED
• On switching time
  20 ms
• Max. positive test pulse with 0 signal
  1000 µs
• Lap
  Overlap
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Nominal width
  15 mm
• Sealing principle
  Soft
• Pilot air supply port
  Internal
• Flow rate of pneumatic valve
  3000 l/min
• Flow rate of pneumatic valve on individual sub-base
  2000 l/min
• Coil characteristics
  24 V DC: 4.6 W
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Relative air humidity
  0 - 90 %
Electrical connection
3-pin Round design
Pneumatic connection 2
Sub-base, size 2 as per ISO 5599-1
Seals material
FPM NBR
Reset method
Pneumatic spring
Type code
VSVA
Conforms to standard
ISO 5599-1
Optimized flow rate of pneumatic valve pneumatically concatenated flow
2200 l/min
Duty cycle
100%
Nominal current with current reduction
35 mA after 30 ms
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Product weight
740 g
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-1
Note on materials
RoHS-compliant
Material of screws
Steel Galvanized
Width
52 mm
Design
Piston gate valve
Width dimension
59 mm
Manual override
Detenting Non-detenting
Symbol
00991806
Nominal pick-up current per solenoid coil
165 mA to 30 ms
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-5 °C ... 50 °C
Type of mounting
On sub-base
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-1
Pneumatic connection 5
Sub-base, size 2 as per ISO 5599-1
Valve function
2x3/2, open/closed, monostable
Operating pressure
3 bar ... 10 bar
Pneumatic working port
Sub-base, size 2 as per ISO 5599-1 G3/8
Certification
C-Tick c UL us - Recognized (OL)
Mounting position
Any
Flow direction
Non-reversible
Switching time off
35 ms
Max. negative test pulse on 1 signal
3500 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-1
Housing material
Die-cast aluminum PA
