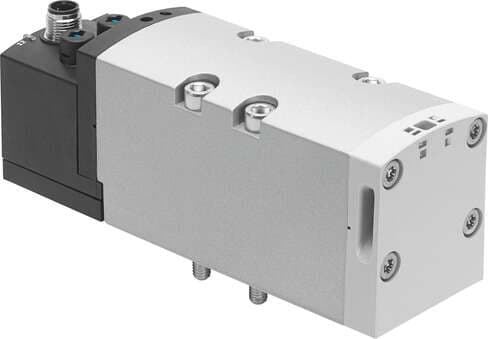

566991 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Standard nominal flow rate
  2200 l/min
• Conforms to standard
  ISO 5599-1
• Signal status display
  LED
• Optimized flow rate of pneumatic valve pneumatically concatenated flow
  2200 l/min
• Duty cycle
  100%
• Coil characteristics
  24 V DC: 4.6 W
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Ambient temperature
  -5 °C ... 50 °C
• Product weight
  740 g
• Pneumatic connection 2
  Sub-base, size 2 as per ISO 5599-1
• Housing material
  Die-cast aluminum PA
• KC characters
  KC EMC
• Pneumatic working port
  Sub-base, size 2 as per ISO 5599-1 G3/8
• Degree of protection
  IP65 NEMA 4
• Width dimension
  59 mm
• Nominal width
  15 mm
• Type of control
  Pilot-controlled
• Switching time off
  35 ms
• Nominal pick-up current per solenoid coil
  165 mA to 30 ms
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-1
Width
52 mm
Reset method
Pneumatic spring
Type code
VSVA
Pilot air supply port
Internal
Flow rate of pneumatic valve
3000 l/min
On switching time
20 ms
Permissible voltage fluctuations
+/- 10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Seals material
FPM NBR
Operating pressure
3 bar ... 10 bar
Operating voltage
24V DC
Certification
C-Tick c UL us - Recognized (OL)
Sealing principle
Soft
Manual override
Detenting Non-detenting
Symbol
00991807
Max. positive test pulse with 0 signal
1000 µs
Max. negative test pulse on 1 signal
3500 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Type of mounting
On sub-base
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-1
Note on materials
RoHS-compliant
Material of screws
Steel Galvanized
Valve function
2x3/2, open, monostable
Actuation type
Electrical
Design
Piston gate valve
Exhaust air function
With flow control option Via individual sub-base
Mounting position
Any
Flow direction
Non-reversible
Flow rate of pneumatic valve on individual sub-base
2000 l/min
Nominal current with current reduction
35 mA after 30 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Relative air humidity
0 - 90 %
Electrical connection
3-pin Round design
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-1
Pneumatic connection 5
Sub-base, size 2 as per ISO 5599-1
