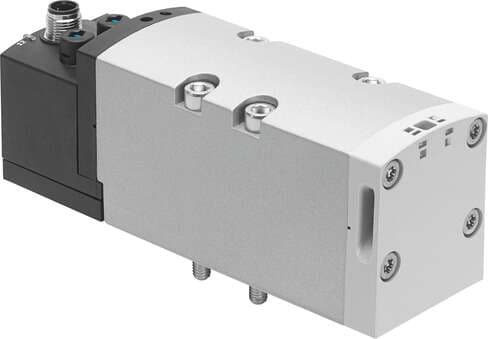

566999 Festo Directional Control Valves

Product Details

• On switching time
  23 ms
• Operating pressure
  3 bar ... 10 bar
• Width
  52 mm
• Certification
  C-Tick c UL us - Recognized (OL)
• Conforms to standard
  ISO 5599-1
• Flow rate of pneumatic valve
  3600 l/min
• Valve function
  5/3, pressurized
• KC characters
  KC EMC
• Standard nominal flow rate
  2700 l/min
• Nominal width
  15 mm
• Exhaust air function
  With flow control option Via individual sub-base
• Flow direction
  Non-reversible
• Optimized flow rate of pneumatic valve pneumatically concatenated flow
  2700 l/min
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Relative air humidity
  0 - 90 %
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  On sub-base
• Material of screws
  Steel Galvanized
• Lap
  Overlap
Design
Piston gate valve
Type code
VSVA
Manual override
Detenting Non-detenting
Symbol
00991083
Flow rate of pneumatic valve on individual sub-base
2300 l/min
Max. positive test pulse with 0 signal
1000 µs
CE marking (see declaration of conformity)
As per EU EMC directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
3-pin Round design
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-1
Actuation type
Electrical
Operating voltage
24V DC
Degree of protection
IP65 NEMA 4
Sealing principle
Soft
Signal status display
LED
Pilot air supply port
Internal
Max. negative test pulse on 1 signal
3500 µs
Nominal current with current reduction
35 mA after 30 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-1
Seals material
FPM NBR
Pneumatic working port
Sub-base, size 2 as per ISO 5599-1 G3/8
Width dimension
59 mm
Mounting position
Any
Type of control
Pilot-controlled
Switching time off
60 ms
Nominal pick-up current per solenoid coil
165 mA to 30 ms
Coil characteristics
24 V DC: 4.6 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
780 g
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-1
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum PA
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 2
Sub-base, size 2 as per ISO 5599-1
Pneumatic connection 5
Sub-base, size 2 as per ISO 5599-1
