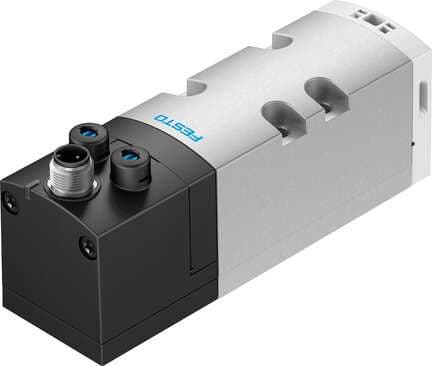

561369 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Max. current consumption
  60 mA
• Standard nominal flow rate
  1100 l/min
• Nominal width
  11 mm
• Manual override
  Detenting Non-detenting
• Symbol
  00991817
• Flow rate of pneumatic valve
  1600 l/min
• Max. positive test pulse with 0 signal
  1600 µs
• Coil characteristics
  24 V DC: 1.3 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Valve function
  2x3/2, closed, monostable
• Actuation type
  Electrical
• Pneumatic working port
  Sub-base, size 1 as per ISO 5599-1 G1/4
• Degree of protection
  IP65 NEMA 4
• Certification
  c CSA us (OL) c UL us - Recognized (OL)
• Reset method
  Pneumatic spring
• Type code
  VSVA
• Conforms to standard
  ISO 5599-1
• Flow direction
  Non-reversible
• Signal status display
  LED
On switching time
20 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Type of mounting
On sub-base
Pilot air port 12/14
Sub-base, size 1 as per ISO 5599-1
Seals material
FPM NBR
Pilot pressure MPa
0.3 MPa ... 1 MPa
Design
Piston gate valve
Sealing principle
Soft
Type of control
Pilot-controlled
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1100 l/min
Duty cycle
100%
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Electrical connection
3-pin Round design
Note on materials
RoHS-compliant
Operating pressure
3 bar ... 10 bar
Width
42 mm
Operating voltage
24V DC
Width dimension
43 mm
Mounting position
Any
Pilot pressure
3 bar ... 10 bar
Flow rate of pneumatic valve on individual sub-base
1200 l/min
Max. negative test pulse on 1 signal
1100 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Relative air humidity
0 - 90 %
Pneumatic connection 1
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 3
Sub-base, size 1 as per ISO 5599-1
Housing material
Die-cast aluminum PA
Exhaust air function
With flow control option Via individual sub-base
Pilot air supply port
External
Switching time off
38 ms
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Product weight
442 g
Pilot exhaust air port 82/84
Optionally: Ducted
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-1
Material of screws
Steel Galvanized
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 5
Sub-base, size 1 as per ISO 5599-1
