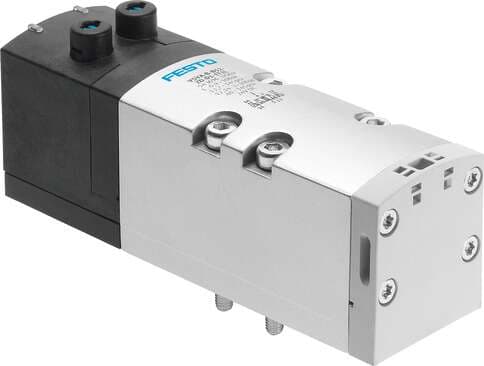

561344 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Design
  Piston gate valve
• Exhaust air function
  With flow control option Via individual sub-base
• Pilot air supply port
  External
• Symbol
  00992245
• On switching time
  20 ms
• Coil characteristics
  24 V DC: 1.3 W
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Product weight
  442 g
• Pilot air port 12/14
  Sub-base, size 1 as per ISO 5599-2
• Pneumatic connection 2
  Sub-base, size 1 as per ISO 5599-2
• Material of screws
  Steel, galvanized
• Standard nominal flow rate
  1400 l/min
• Operating voltage
  24V DC
• Pilot pressure
  3 bar ... 10 bar
• Signal status display
  LED
• Optimized flow rate of pneumatic valve, pneumatically concatenated flow
  1500 l/min
• Max. positive test pulse with 0 signal
  1600 µs
• Surge resistance
  2.5 kV
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
0 - No corrosion stress
Pilot exhaust air port 82/84
Optionally: Ducted
Housing material
Die-cast aluminum PA
Valve function
2x2/2 closed, monostable
Width
42 mm
Reset method
Pneumatic spring
Mounting position
Any
Flow direction
Any
Switching time off
38 ms
Nominal pick-up current per solenoid coil
60 mA to 30 ms
Permissible voltage fluctuations
+/- 10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Type of mounting
On sub-base
Pneumatic connection 3
Sub-base, size 1 as per ISO 5599-2
Pilot pressure MPa
0.3 MPa ... 1 MPa
Pneumatic working port
Sub-base, size 1 as per ISO 5599-2 G3/8
Certification
CSA (OL) c UL us - Recognized (OL)
Type code
VSVA
Manual override
Detenting Covered
Flow rate of pneumatic valve on individual sub-base
1400 l/min
Pneumatic connection 5
Sub-base, size 1 as per ISO 5599-2
Seals material
FPM NBR
Operating pressure
-0.9 bar ... 10 bar
Degree of protection
IP65 NEMA 4
Sealing principle
Soft
Type of control
Pilot-controlled
Flow rate of pneumatic valve
1600 l/min
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1400 l/min
Max. negative test pulse on 1 signal
1100 µs
Contamination level
3
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Relative air humidity
0 - 90 %
Electrical connection
Plug-in as per ISO 5599-2
Pneumatic connection 1
Sub-base, size 1 as per ISO 5599-2
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-2
Note on materials
RoHS-compliant
