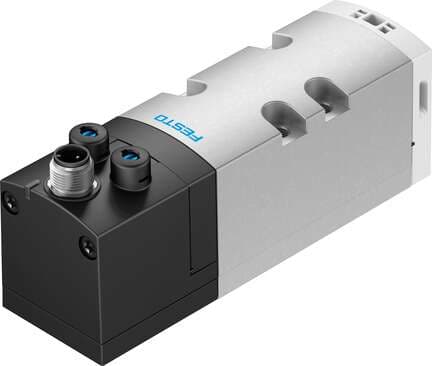

561361 Festo Directional Control Valves

Product Details

• Operating pressure
  3 bar ... 10 bar
• Design
  Piston gate valve
• Width dimension
  43 mm
• Symbol
  00991806
• Flow rate of pneumatic valve
  1600 l/min
• Duty cycle
  100%
• Permissible voltage fluctuations
  +/- 10 %
• Product weight
  442 g
• Pneumatic connection 1
  Sub-base, size 1 as per ISO 5599-1
• Material of screws
  Steel Galvanized
• Width
  42 mm
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Signal status display
  LED
• Optimized flow rate of pneumatic valve pneumatically concatenated flow
  1100 l/min
• Max. negative test pulse on 1 signal
  1100 µs
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Type of mounting
  On sub-base
• Pneumatic connection 3
  Sub-base, size 1 as per ISO 5599-1
Valve function
2x3/2, open/closed, monostable
Pneumatic working port
Sub-base, size 1 as per ISO 5599-1 G1/4
Nominal width
11 mm
Mounting position
Any
Type of control
Pilot-controlled
Switching time off
38 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-1
Seals material
FPM NBR
Standard nominal flow rate
1100 l/min
Certification
c CSA us (OL) c UL us - Recognized (OL)
Exhaust air function
With flow control option Via individual sub-base
Manual override
Detenting Non-detenting
Flow direction
Non-reversible
Coil characteristics
24 V DC: 1.3 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Corrosion resistance class (CRC)
0 - No corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-1
Note on materials
RoHS-compliant
Lap
Overlap
Actuation type
Electrical
Operating voltage
24V DC
Degree of protection
IP65 NEMA 4
Type code
VSVA
Conforms to standard
ISO 5599-1
Pilot air supply port
Internal
Flow rate of pneumatic valve on individual sub-base
1200 l/min
On switching time
20 ms
Max. positive test pulse with 0 signal
1600 µs
Relative air humidity
0 - 90 %
Electrical connection
3-pin Round design
Pneumatic connection 5
Sub-base, size 1 as per ISO 5599-1
Housing material
Die-cast aluminum PA
