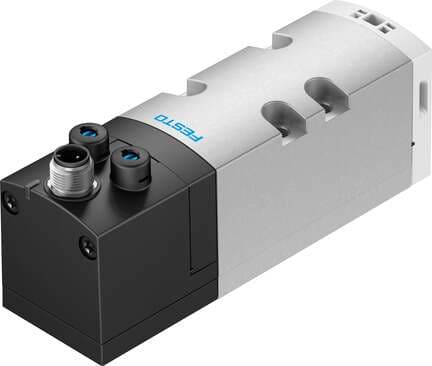

561364 Festo Directional Control Valves
Part#:561364
Alt. Part#:VSVA-B-B52-D-D1-1R5L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve VSVA-B-B52-D-D1-1R5L Valve function: 5/2 bistable, Type of actuation: electrical, Width: 42 mm, Standard nominal flow rate: 1300 l/min, Operating pressure: 3 - 10 bar
Product Details
- Valve function 5/2, bistable
- Width 42 mm
- Degree of protection IP65 NEMA 4
- Exhaust air function With flow control option Via individual sub-base
- Type of control Pilot-controlled
- Flow direction Non-reversible
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 1300 l/min
- Max. negative test pulse on 1 signal 900 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Product weight 439 g
- Operating pressure 3 bar ... 10 bar
- Operating voltage 24V DC
- Width dimension 43 mm
- Manual override Detenting Non-detenting
- Signal status display LED
- Changeover time 16 ms
- Coil characteristics 24 V DC: 1.6 W
- Temperature of medium -5 °C ... 50 °C
- Electrical connection 3-pin Round design
- Ambient temperature -5 °C ... 50 °C
- Seals material FPM NBR
- Lap Overlap
- Standard nominal flow rate 1300 l/min
- Certification c CSA us (OL) c UL us - Recognized (OL)
- Sealing principle Soft
- Conforms to standard ISO 5599-1
- Symbol 00991005
- Pneumatic connection 4 Sub-base, size 1 as per ISO 5599-1
- Material of screws Steel Galvanized
- Actuation type Electrical
- Design Piston gate valve
- Type code VSVA
- Pilot air supply port Internal
- Flow rate of pneumatic valve 2000 l/min
- Max. positive test pulse with 0 signal 1400 µs
- Permissible voltage fluctuations +/- 10 %
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Relative air humidity 0 - 90 %
- Pneumatic connection 2 Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 1 as per ISO 5599-1
- Pneumatic working port Sub-base, size 1 as per ISO 5599-1 G1/4
- Nominal width 11 mm
- Mounting position Any
- Flow rate of pneumatic valve on individual sub-base 1400 l/min
- Duty cycle 100%
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting On sub-base
- Pneumatic connection 3 Sub-base, size 1 as per ISO 5599-1
- Housing material Die-cast aluminum PA
- Pneumatic connection 1 Sub-base, size 1 as per ISO 5599-1
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
