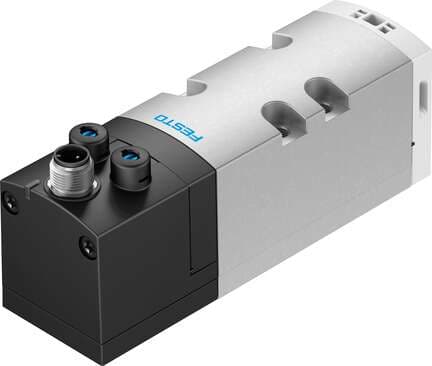

561377 Festo Directional Control Valves

Product Details

• Product weight
  456 g
• Pneumatic connection 1
  Sub-base, size 1 as per ISO 5599-1
• Pneumatic connection 5
  Sub-base, size 1 as per ISO 5599-1
• Operating pressure
  -0.9 bar ... 16 bar
• Operating voltage
  24V DC
• Nominal width
  11 mm
• Exhaust air function
  With flow control option Via individual sub-base
• Pilot air supply port
  External
• Signal status display
  LED
• Coil characteristics
  24 V DC: 1.6 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Relative air humidity
  0 - 90 %
• Valve function
  5/3, exhausted
• Standard nominal flow rate
  1300 l/min
• Pneumatic working port
  Sub-base, size 1 as per ISO 5599-1 G1/4
• Type code
  VSVA
• Conforms to standard
  ISO 5599-1
• Flow direction
  Any
• Flow rate of pneumatic valve on individual sub-base
  1400 l/min
• Duty cycle
  100%
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Pilot exhaust air port 82/84
Optionally: Ducted
Actuation type
Electrical
Design
Piston gate valve
Sealing principle
Soft
Type of control
Pilot-controlled
Flow rate of pneumatic valve
1900 l/min
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Electrical connection
3-pin Round design
Pilot air port 12/14
Sub-base, size 1 as per ISO 5599-1
Pneumatic connection 3
Sub-base, size 1 as per ISO 5599-1
Housing material
Die-cast aluminum PA
Pilot pressure MPa
0.3 MPa ... 1 MPa
Width
42 mm
Degree of protection
IP65 NEMA 4
Certification
c CSA us (OL) c UL us - Recognized (OL)
Manual override
Detenting Non-detenting
Symbol
00991752
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1300 l/min
Switching time off
65 ms
Max. positive test pulse with 0 signal
1400 µs
Material of screws
Steel Galvanized
Lap
Overlap
Max. current consumption
72 mA
Width dimension
43 mm
Mounting position
Any
Pilot pressure
3 bar ... 10 bar
On switching time
22 ms
Max. negative test pulse on 1 signal
900 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
On sub-base
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-1
Note on materials
RoHS-compliant
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-1
Seals material
FPM NBR
